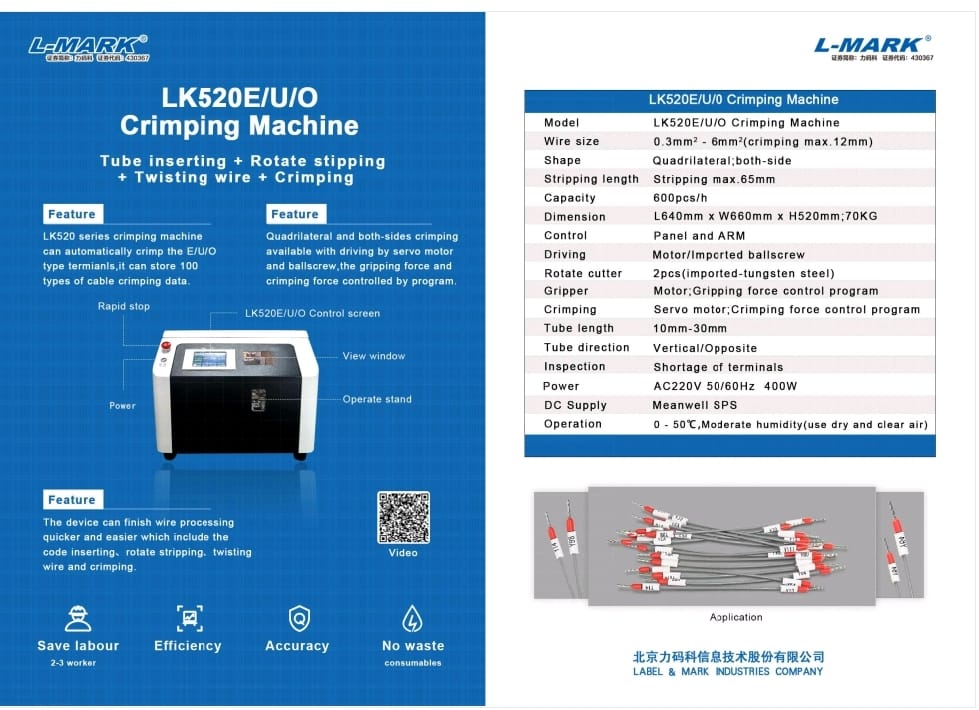

L-MARK LK520E/U/O Crimping Machine

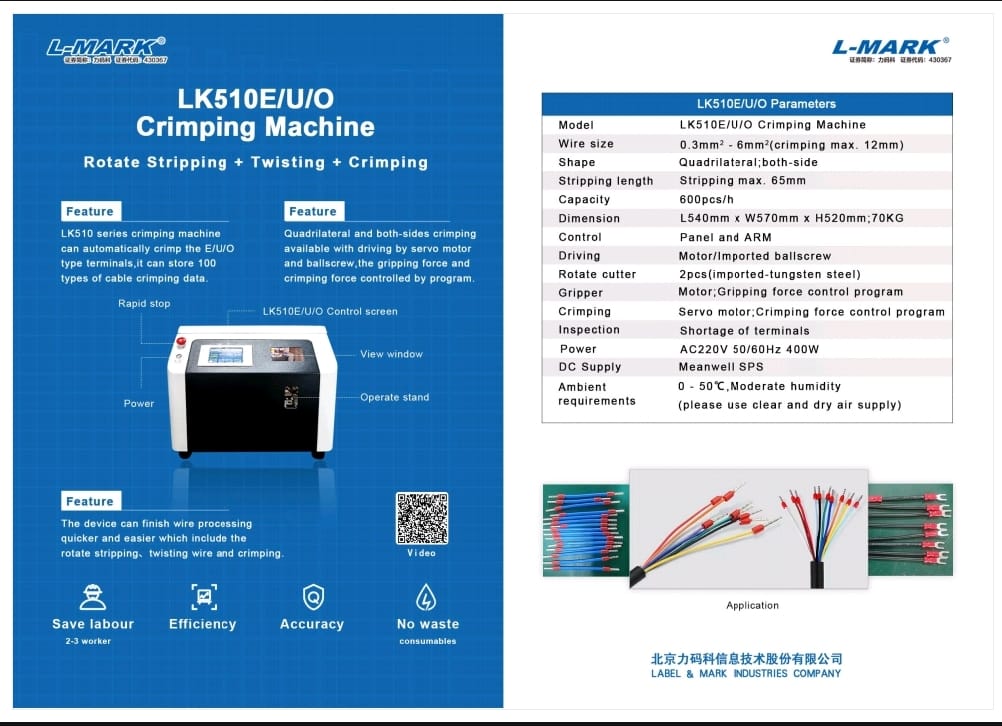

L-MARK LK510E/U/O Crimping Machine

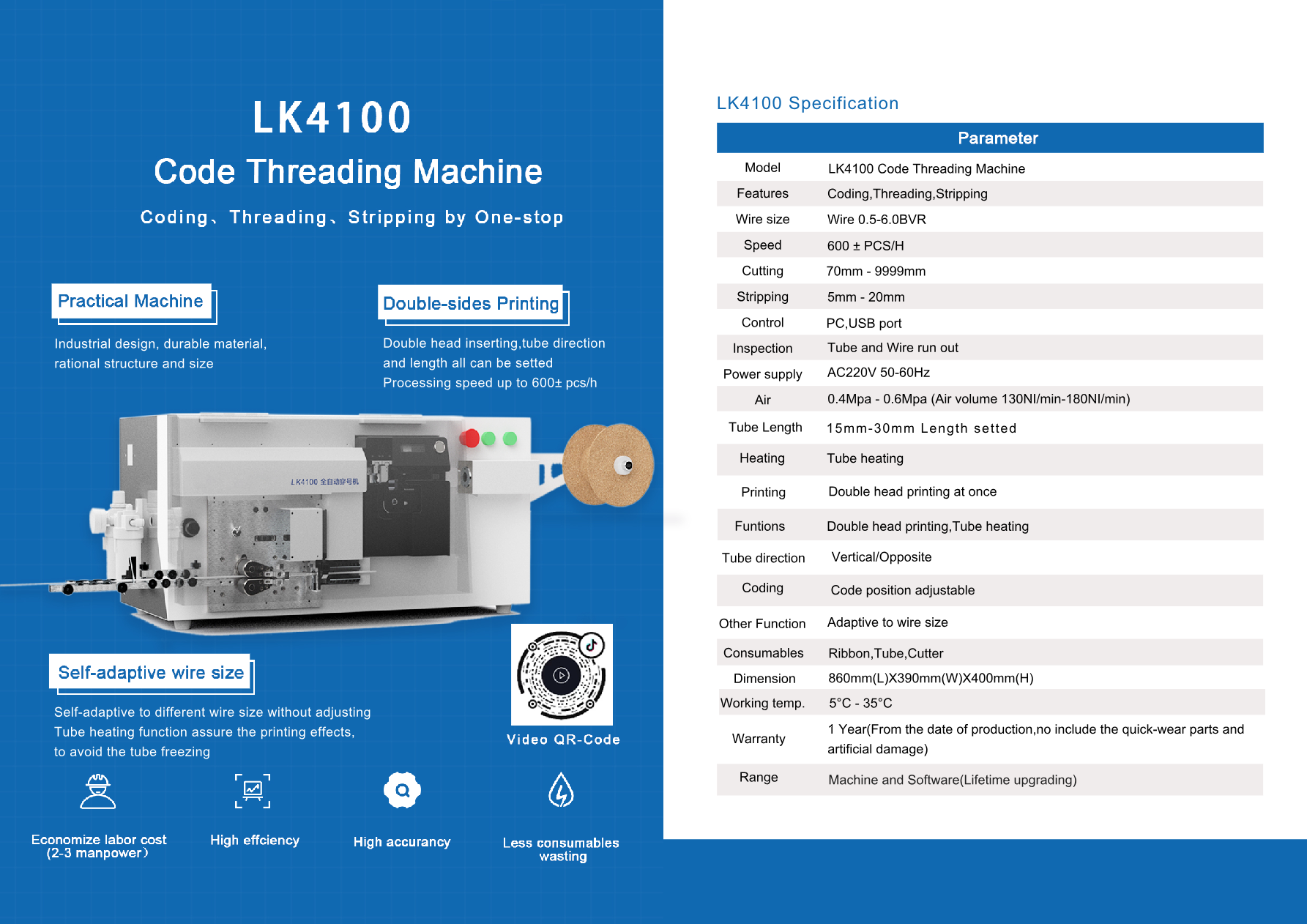

L-MARK LK4100 AutoMarking ,Coding , Threading and Striping

Ink Cartridge:

Colour:Cyan, Magenta, Yellow, BlackModel:SJIC23P(C), SJIC23P(M), SJIC23P(Y), SJIC23P(K)

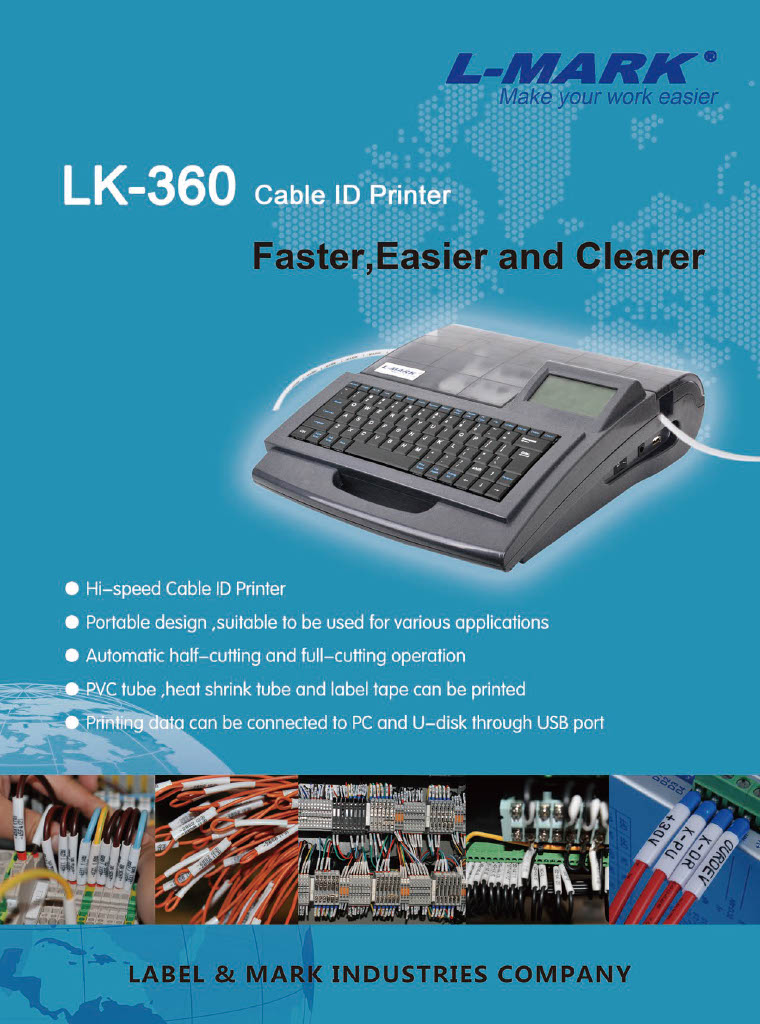

LK-360 CABLE ID PRINTER

LK360 CATL 2023

LK-360 CABLE ID PRINTER

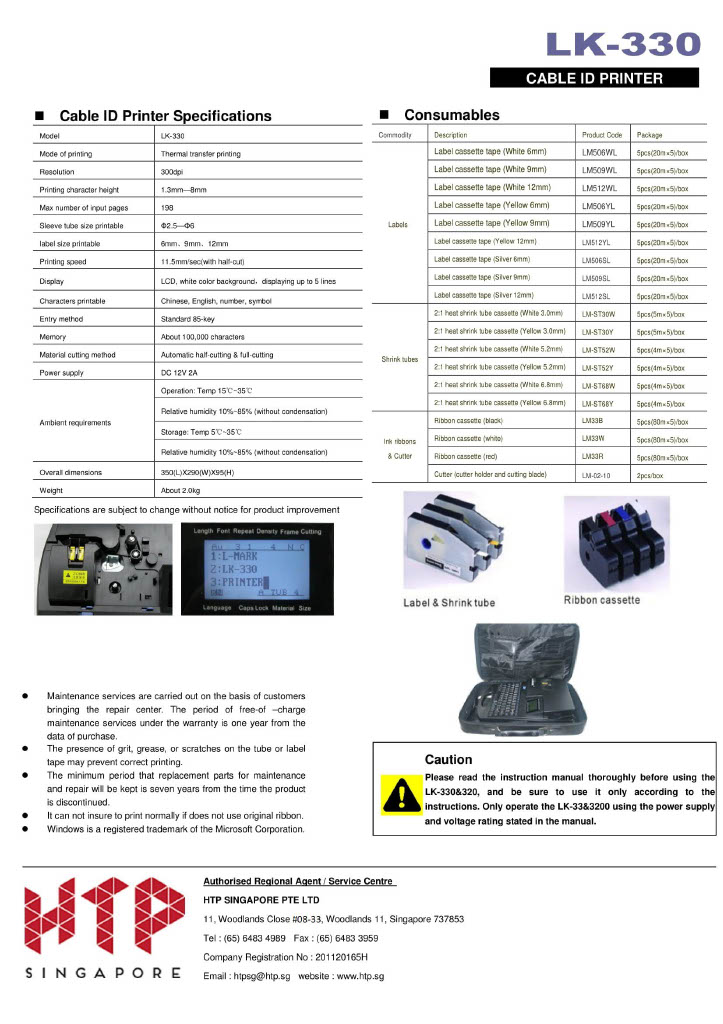

LK-330 CABLE ID PRINTER

LK-320 CABLE ID PRINTER

Souriau -FCI - Burndy

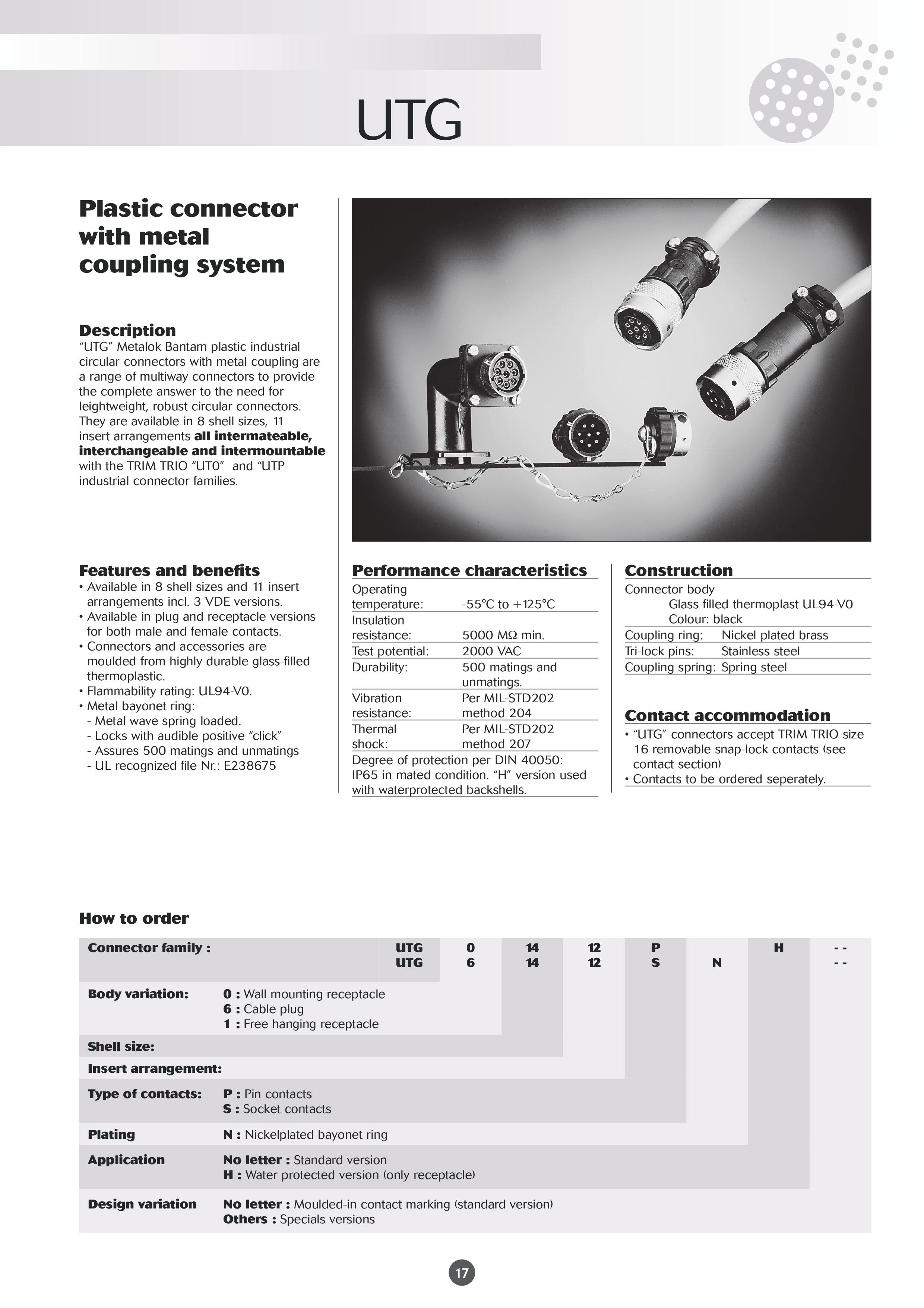

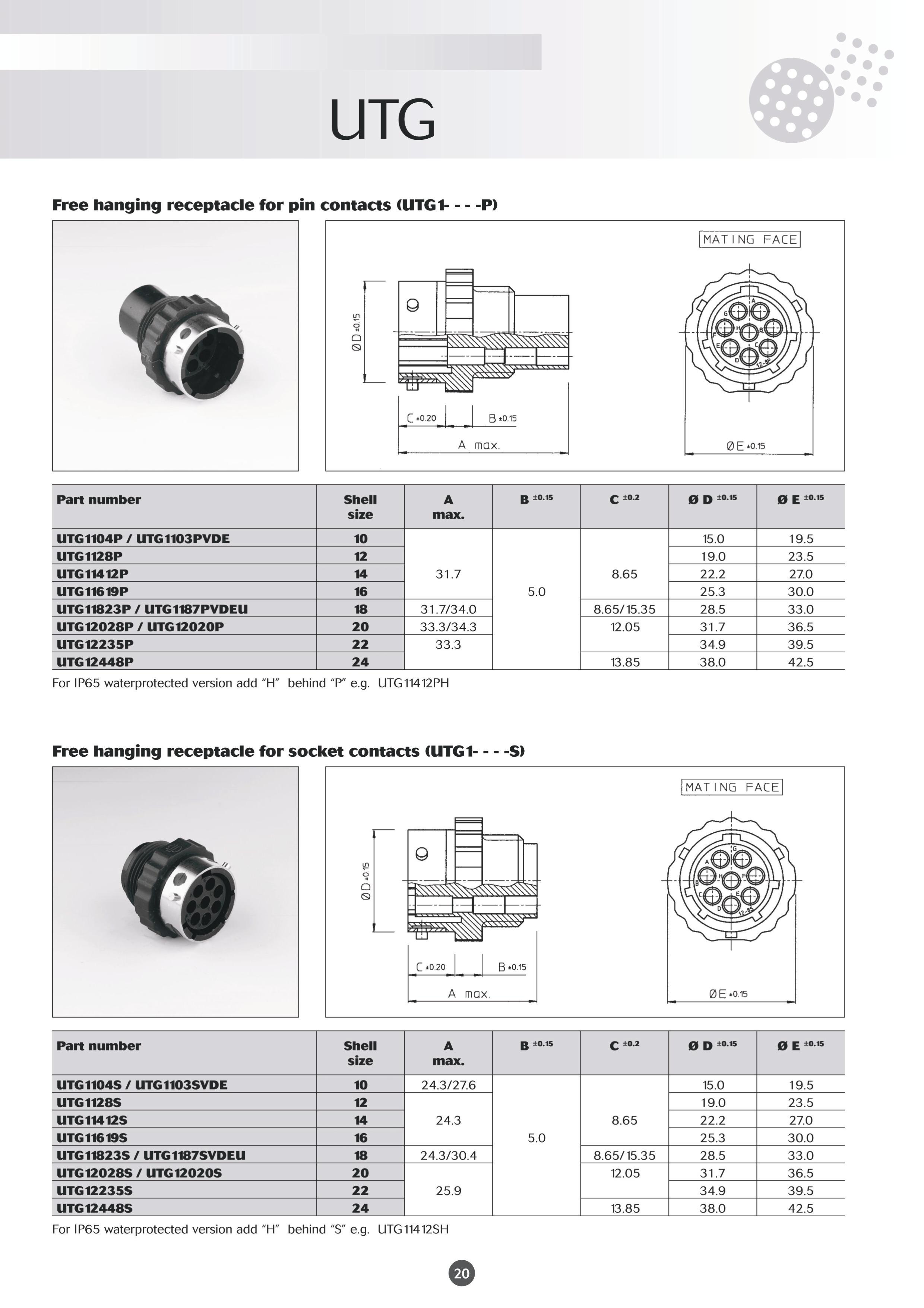

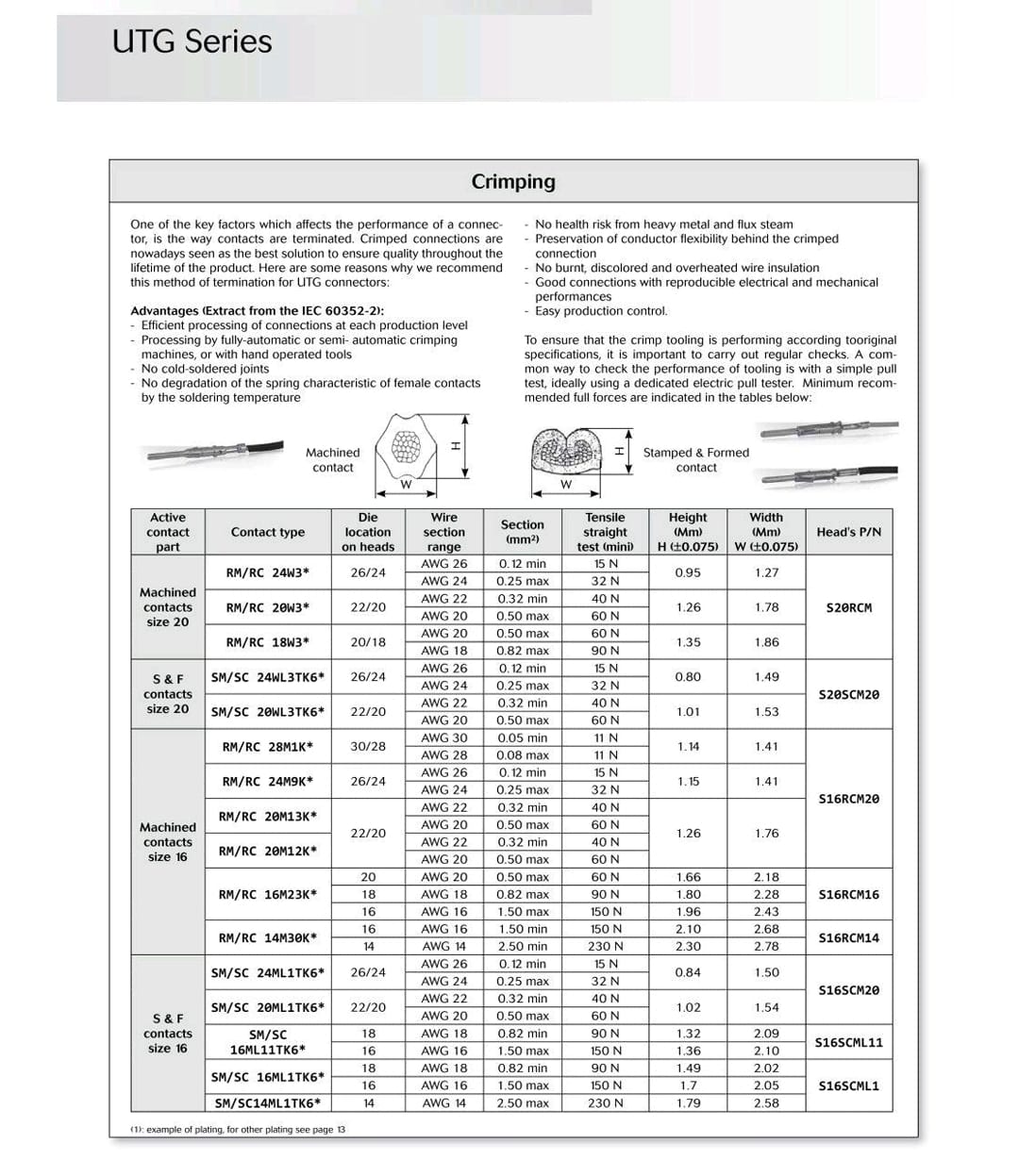

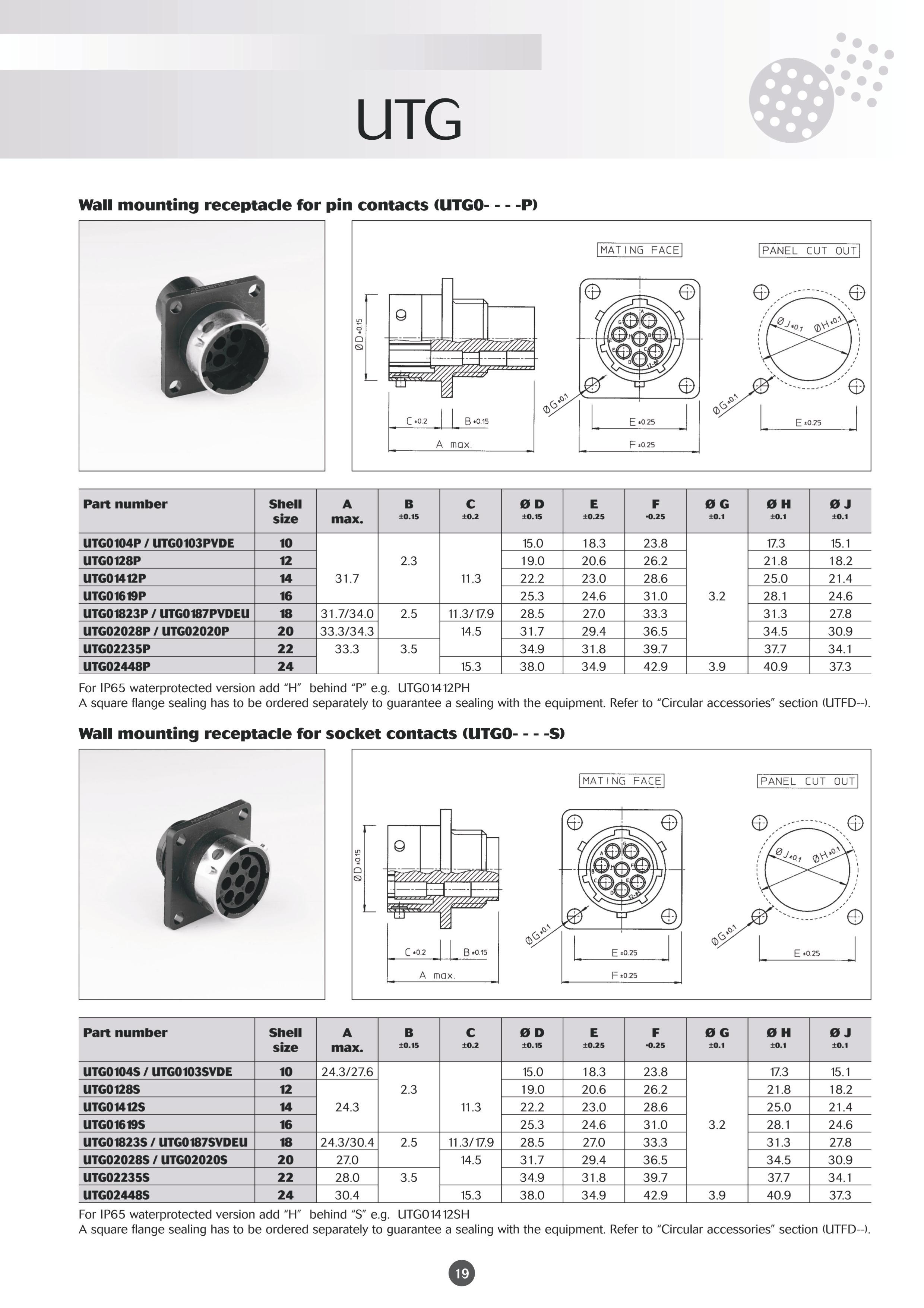

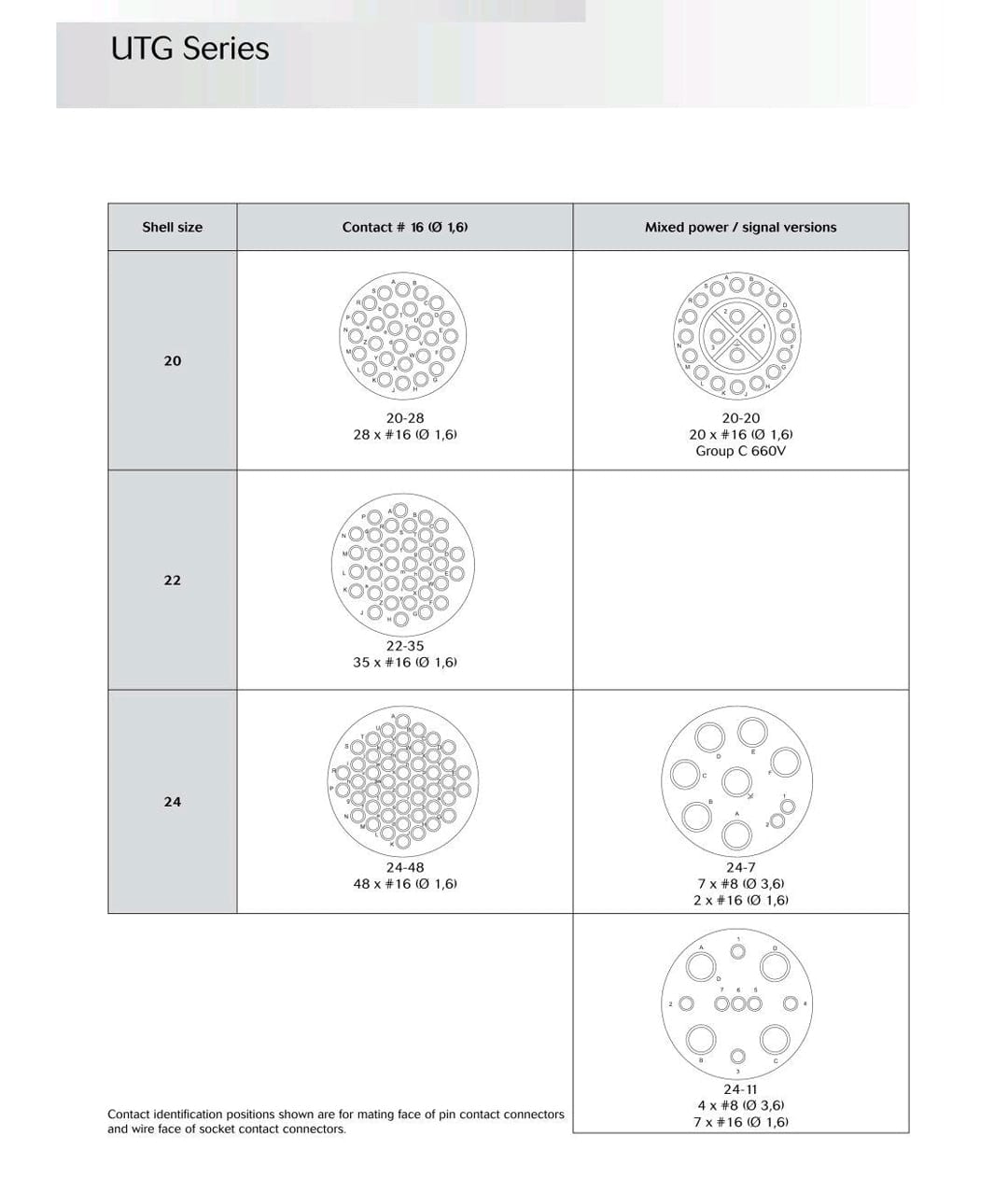

UTG SERIES CONNECTOR

Souriau -FCI - Burndy

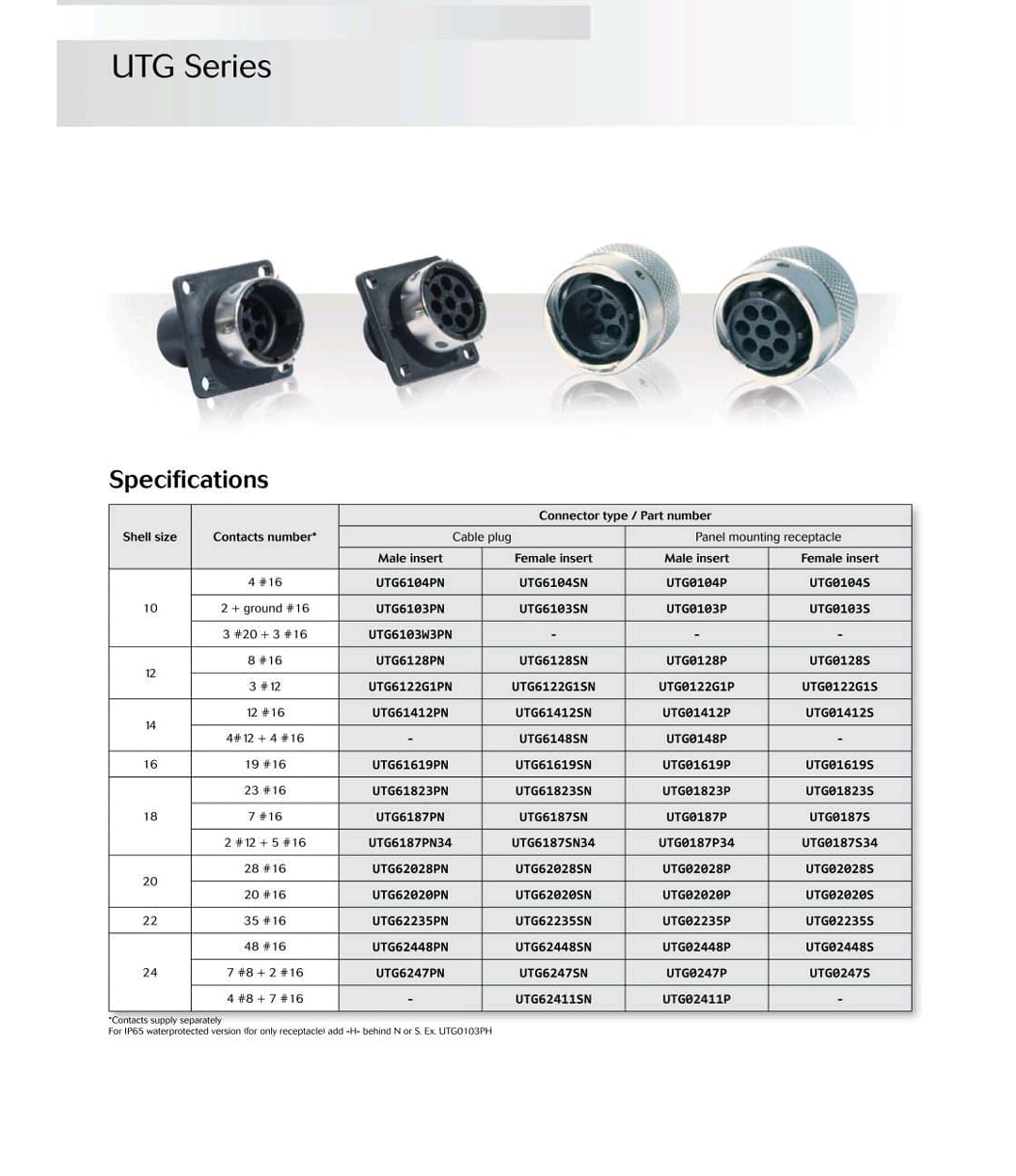

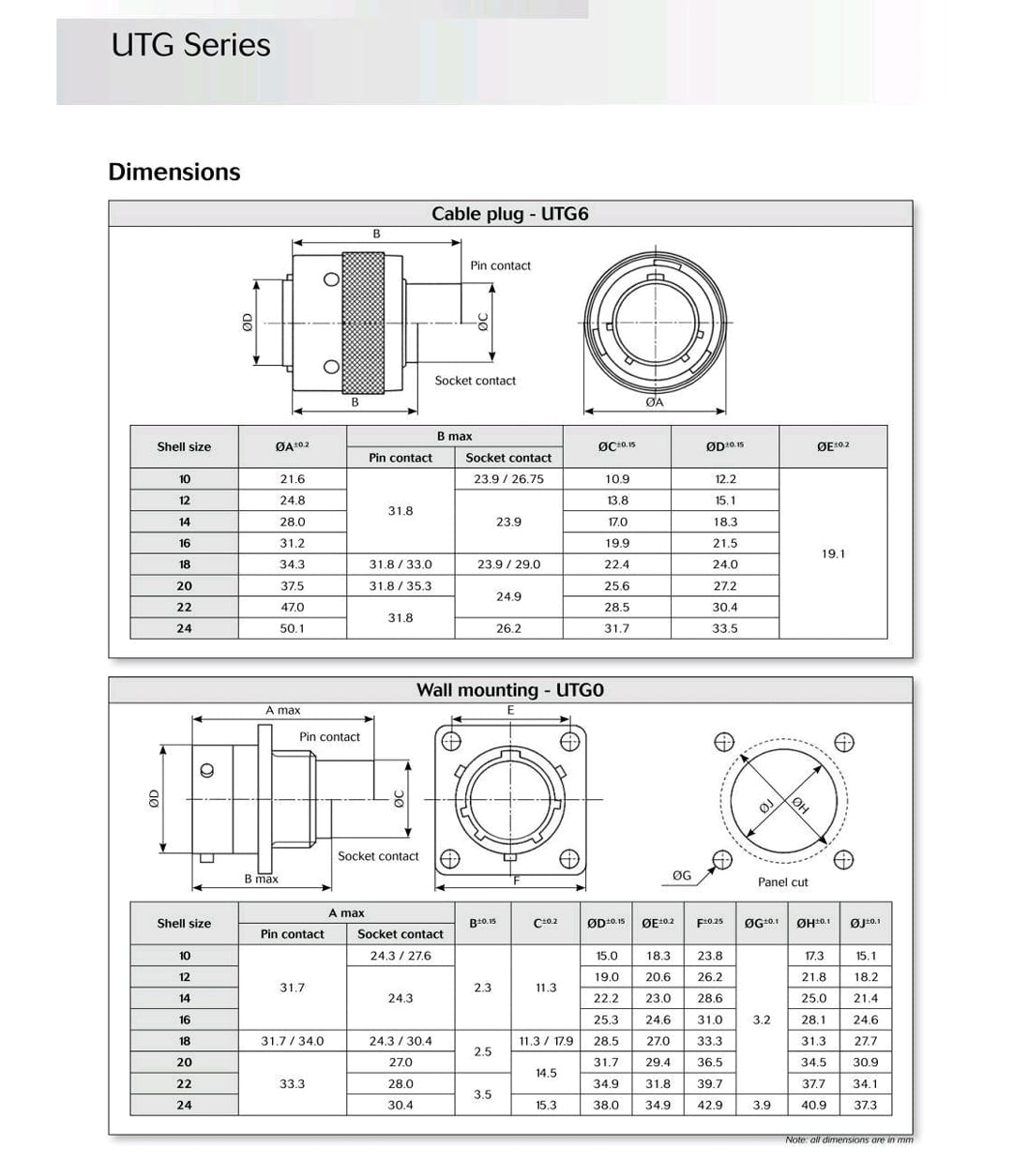

Connector for heavy-duty applications UTG Series

DESCRIPTION

• Sealing: IP65 • UV Resistance • Resistance to shock and vibrations • Standard: UL94V0 • RoHS • REACH • 500 mating cycles The UTG series is a circular connector with a 1/3 bayonet coupling to quickly connect the system and secured connection due to an audible click which guarantees the proper connection. UTG connectors use the advantages of plastic and metal to offer you a lightweight solution combined with high durability with up to 500 mating cycles. UTG connectors answer the need for economical lightweight and robust coupling. Within the UTG series, the large choice of layouts offers you the option to mix signal and power or copper and optic within the same connector. UTG series guarantees safety conditions with UL94V0 approval and environmental REACH and RoHS qualifications. UTG connectors use the Trim Trio contacts and are fully compatible with UTS and UT0 series, which provides you the option to change from one series to another without tools or panel cut-out modifications. Now your product upgrade is easier, faster and without additional costs!

Souriau -FCI - Burndy

N/A

Souriau -FCI - Burndy

CHARACTERISTICS

Type

data, electrical power supply, combined

Shape

circular

Connection type

bayonet

Material

plastic, metal

Product applications

for heavy-duty applications

Field

for harsh environments, for railway applications, for telecom applications, for robotic applications

Protection class

IP65

Other characteristics

panel-mount, ultra-rugged, lightweight

Operating temperature

Min.: -40 °C (-40 °F)

Max.: 105 °C (221 °F)

Souriau -FCI - Burndy

N/A

Souriau -FCI - Burndy

Arrow

For more information about ARROW Tower Light, please download the catalogue here.

Arrow

Reign Power AC-DC Switching Power Supplies

Dispenser Coil

Accessories for printers Mk1500, Mk2600: the Dispenser coil with pipe

A number of clients to print to a printer cable, use PVC pipe and shrink tube to reel. Because power printer printer mechanism is not sufficient for unwinding the reel with hose, reel to reel off the ball during the printing process, in order to avoid problems such as the distortion of the printed information, incorrect definition of the length of the marker. As a solution, developed a convenient dispenser coil.

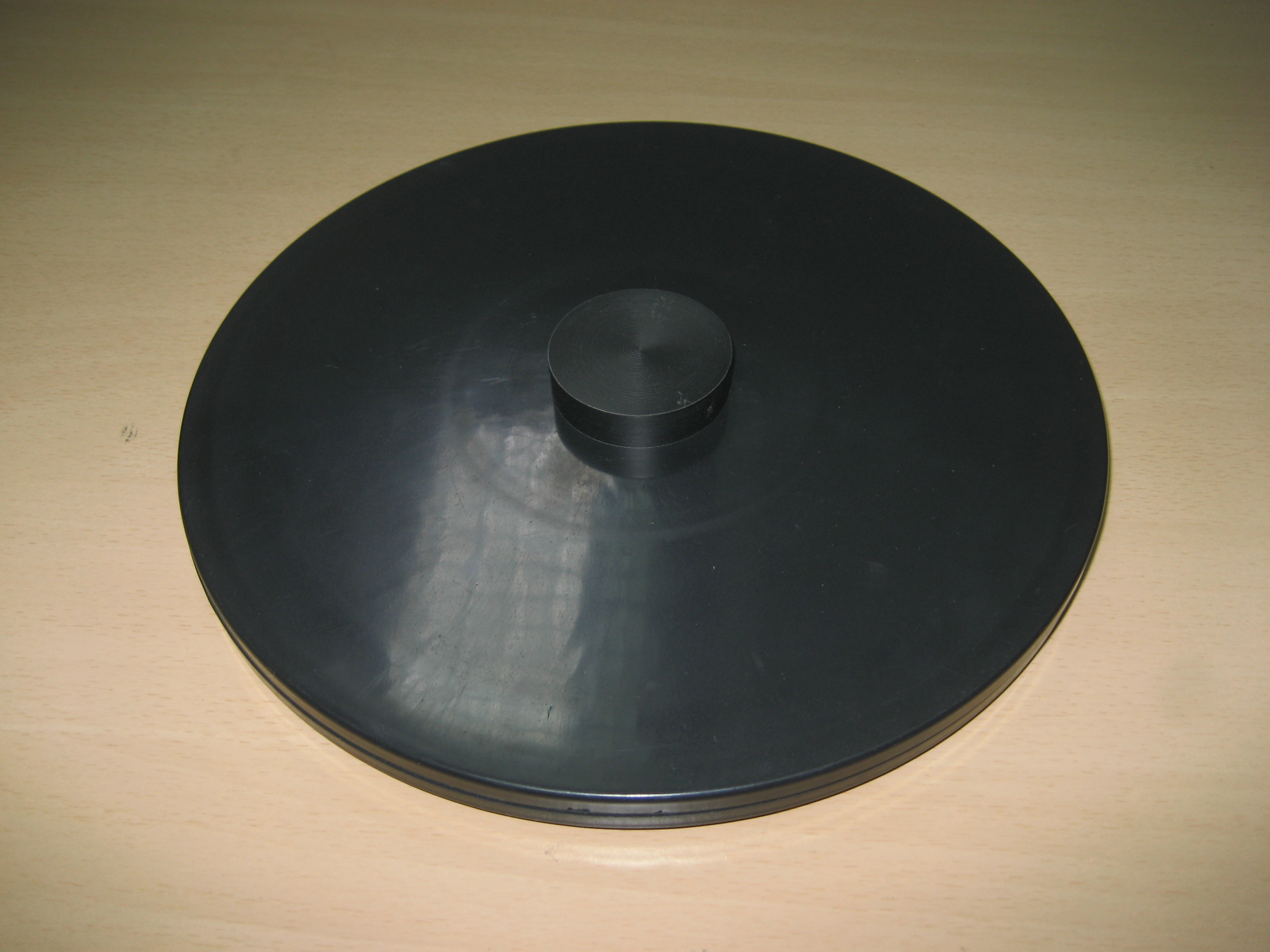

Profiles of decoiler ( Model : MS-TH26B )

• Housing material: plastic
• Dimensions: 200 x 28 mm
• Diameter : 38.1 mm (1 ¹/₂")
• Weight: 215 g

The appearance of decoiler coil

Dispenser Coil

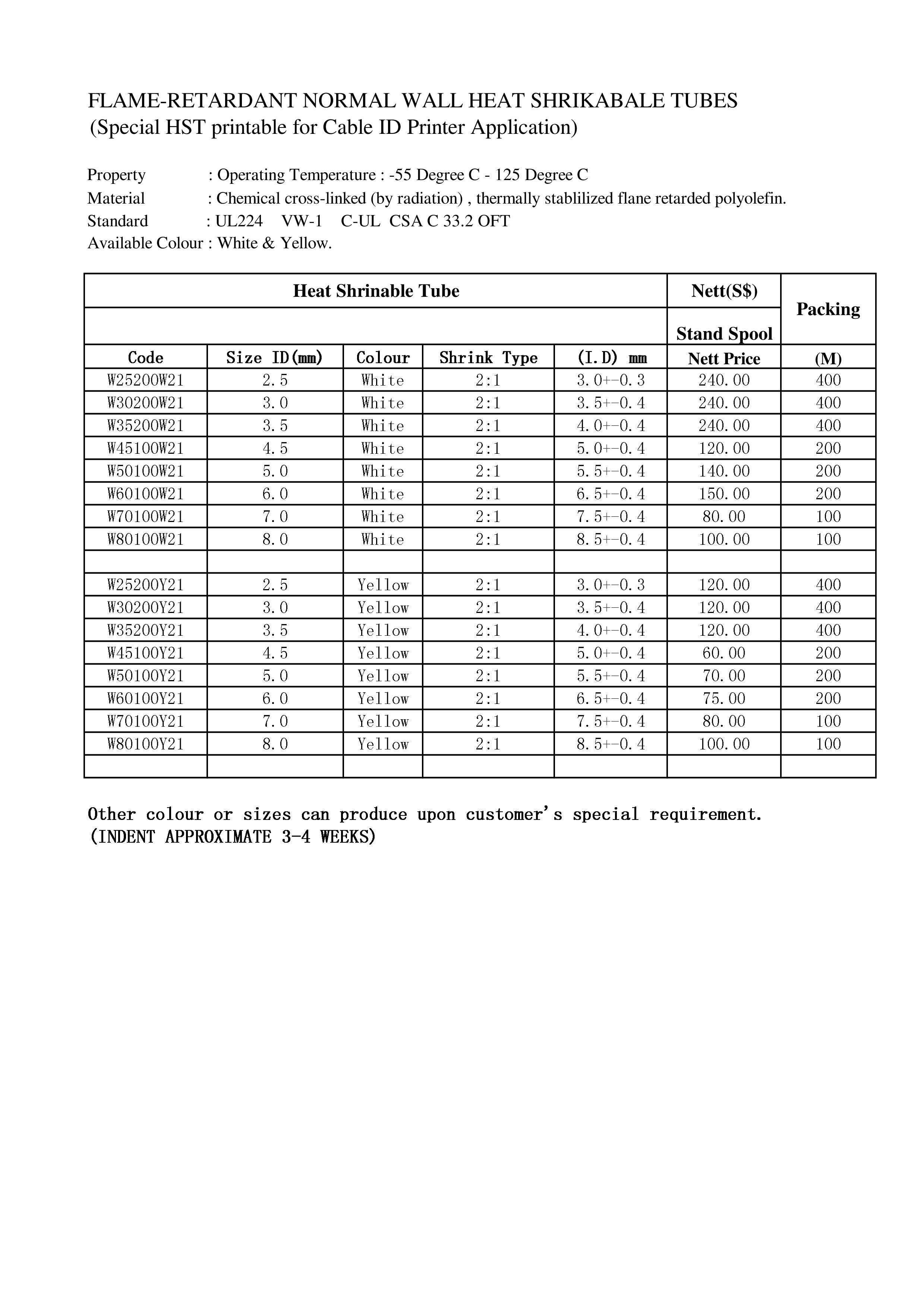

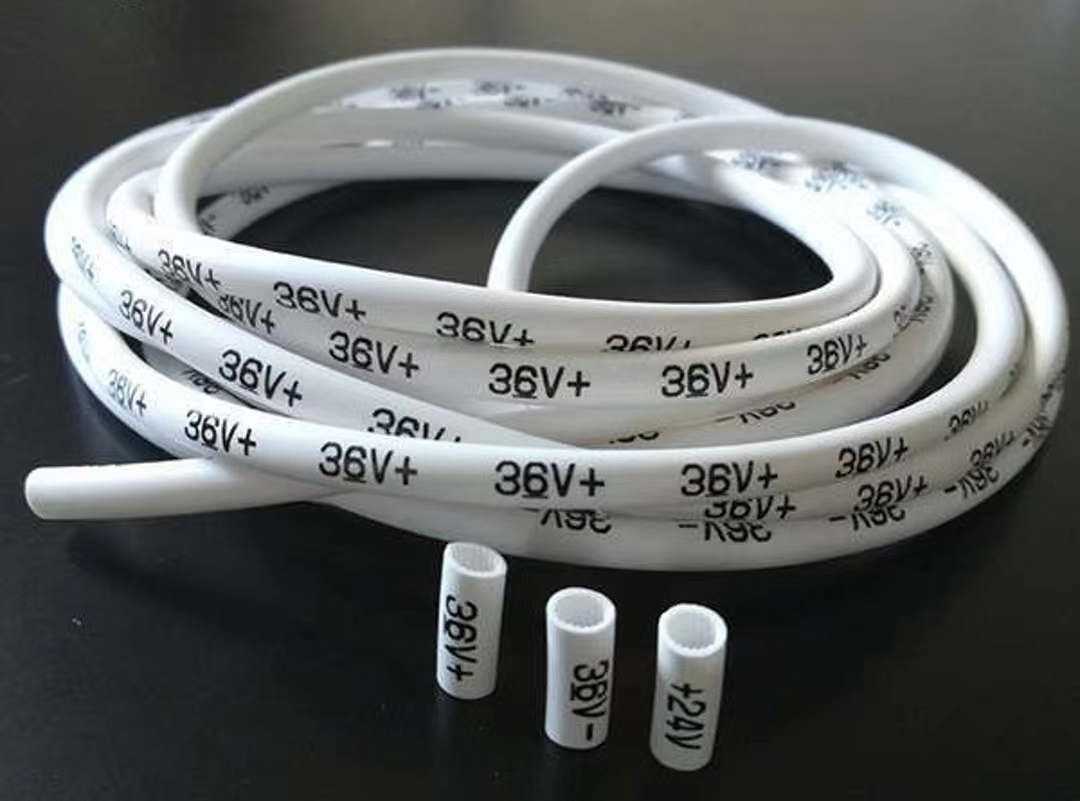

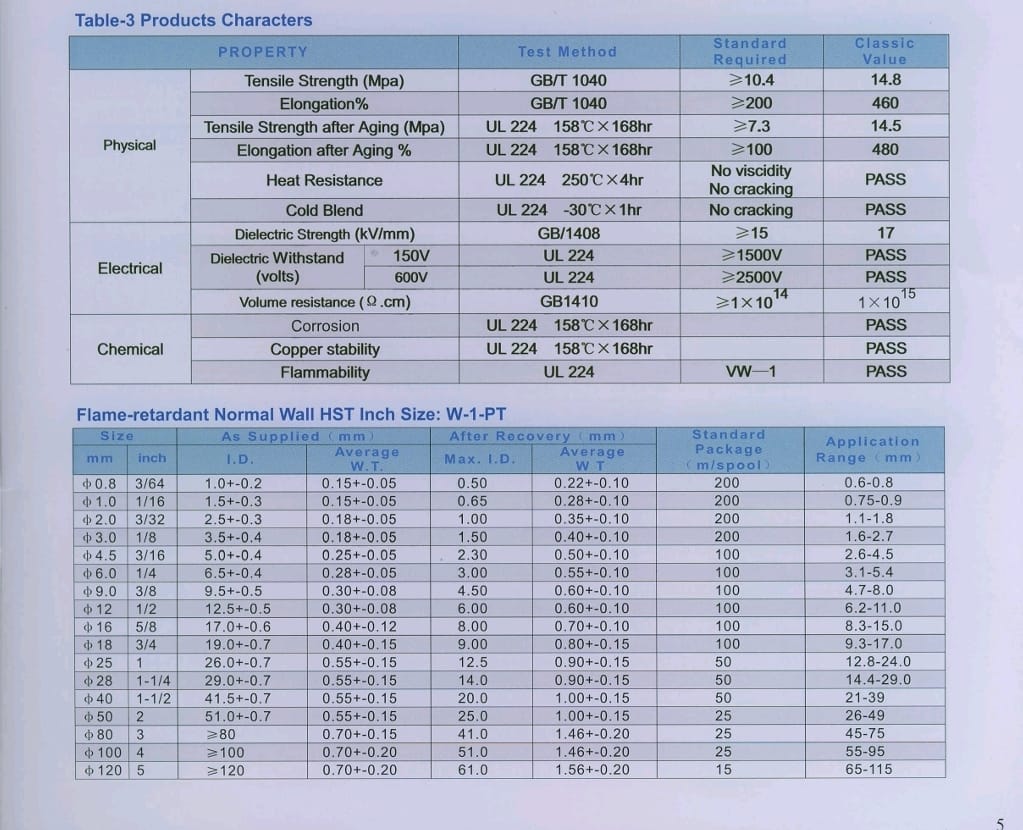

Heat Shrinkable Tube ( For Marking Cable ID Printer)

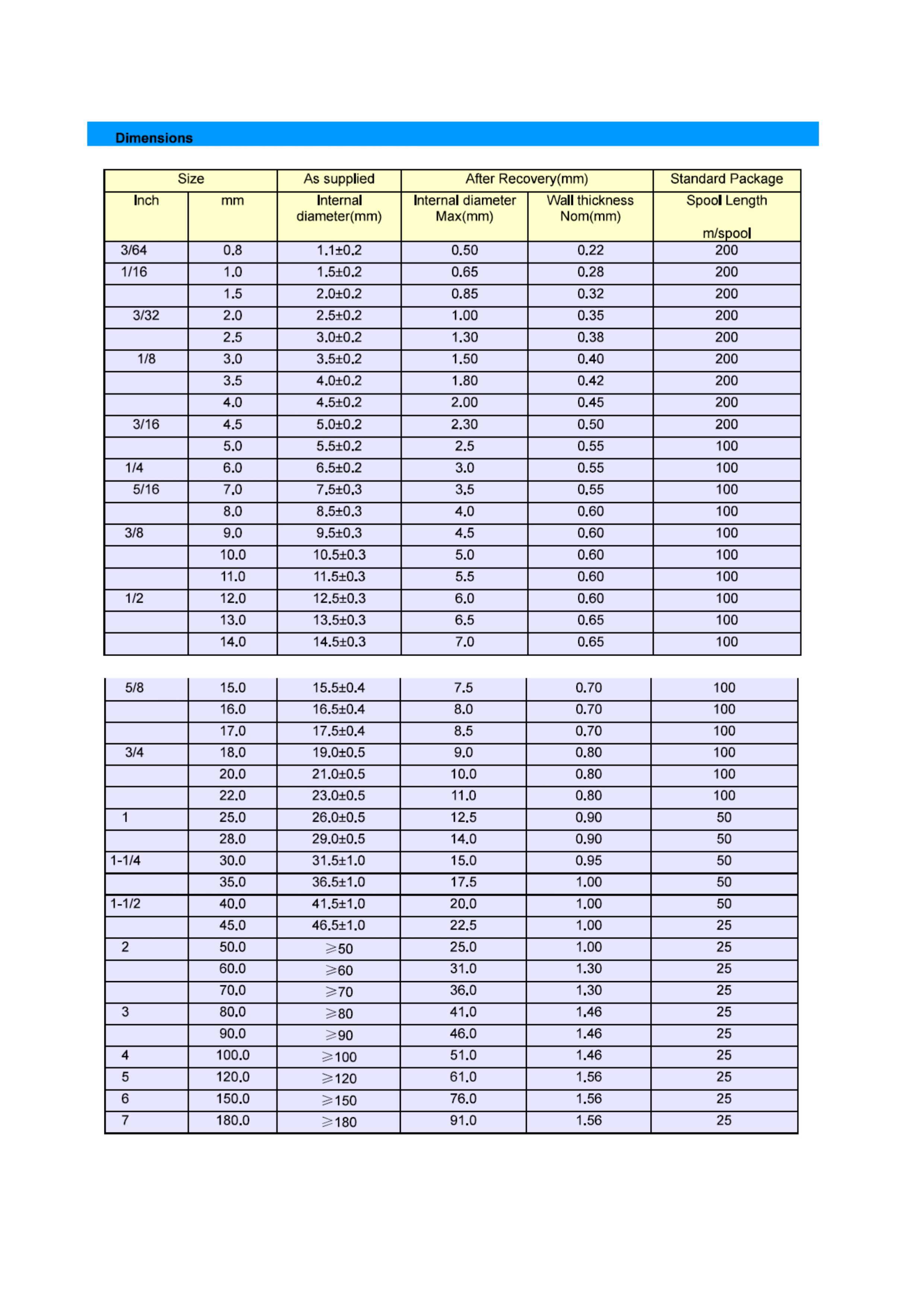

WOER2

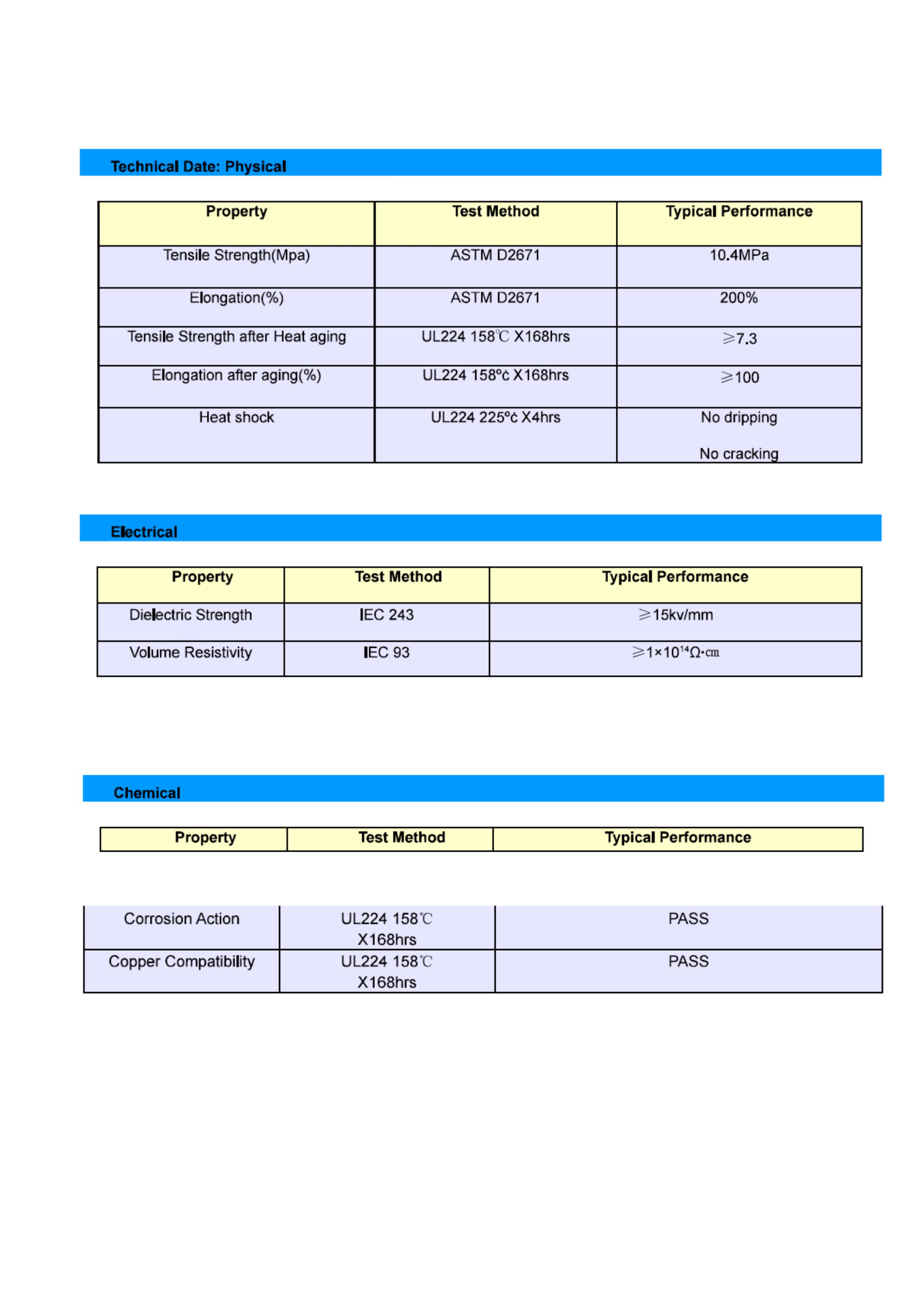

WOER3

Heat Shrinkable Tube ( For Marking Cable ID Printer)

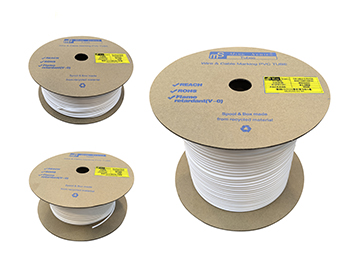

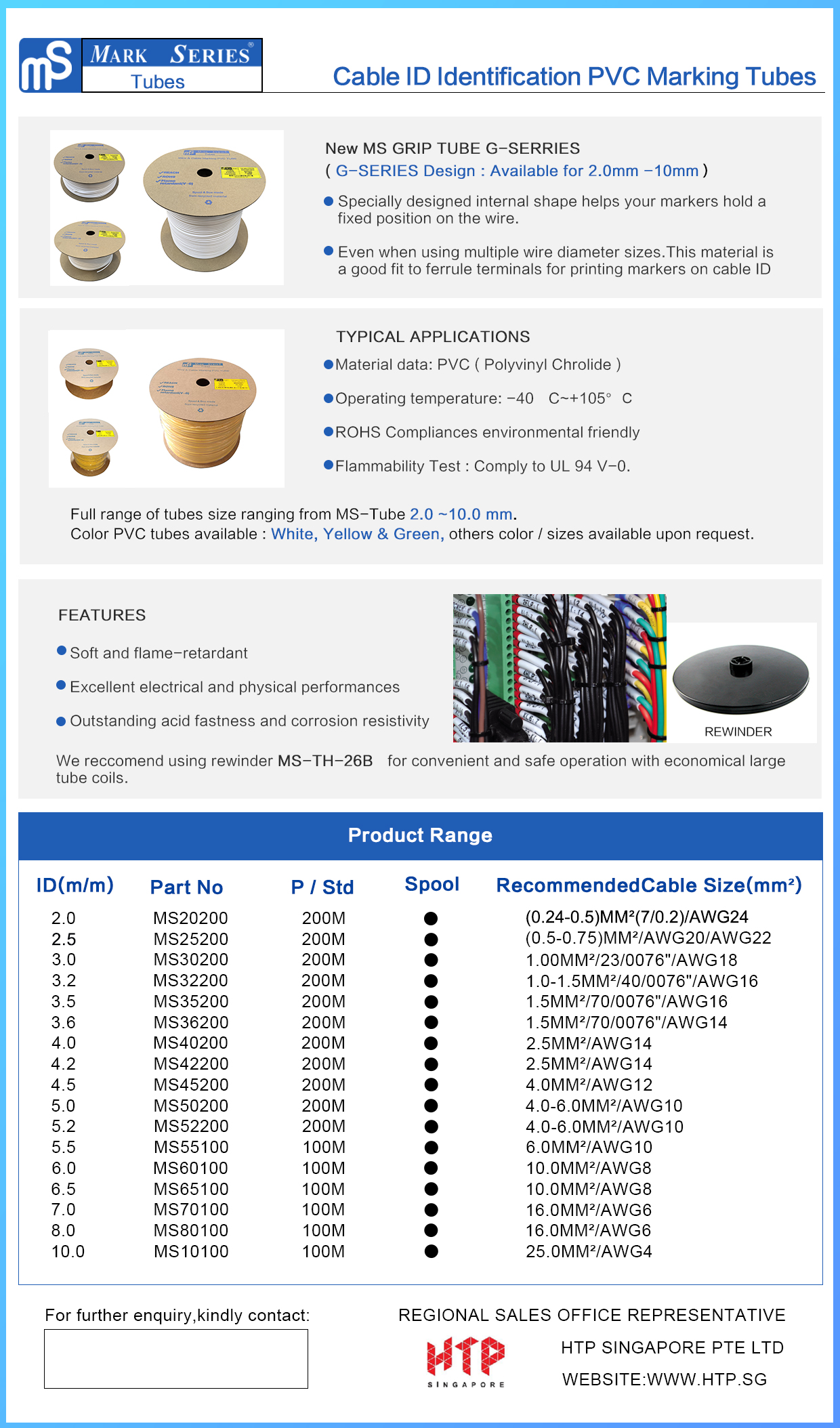

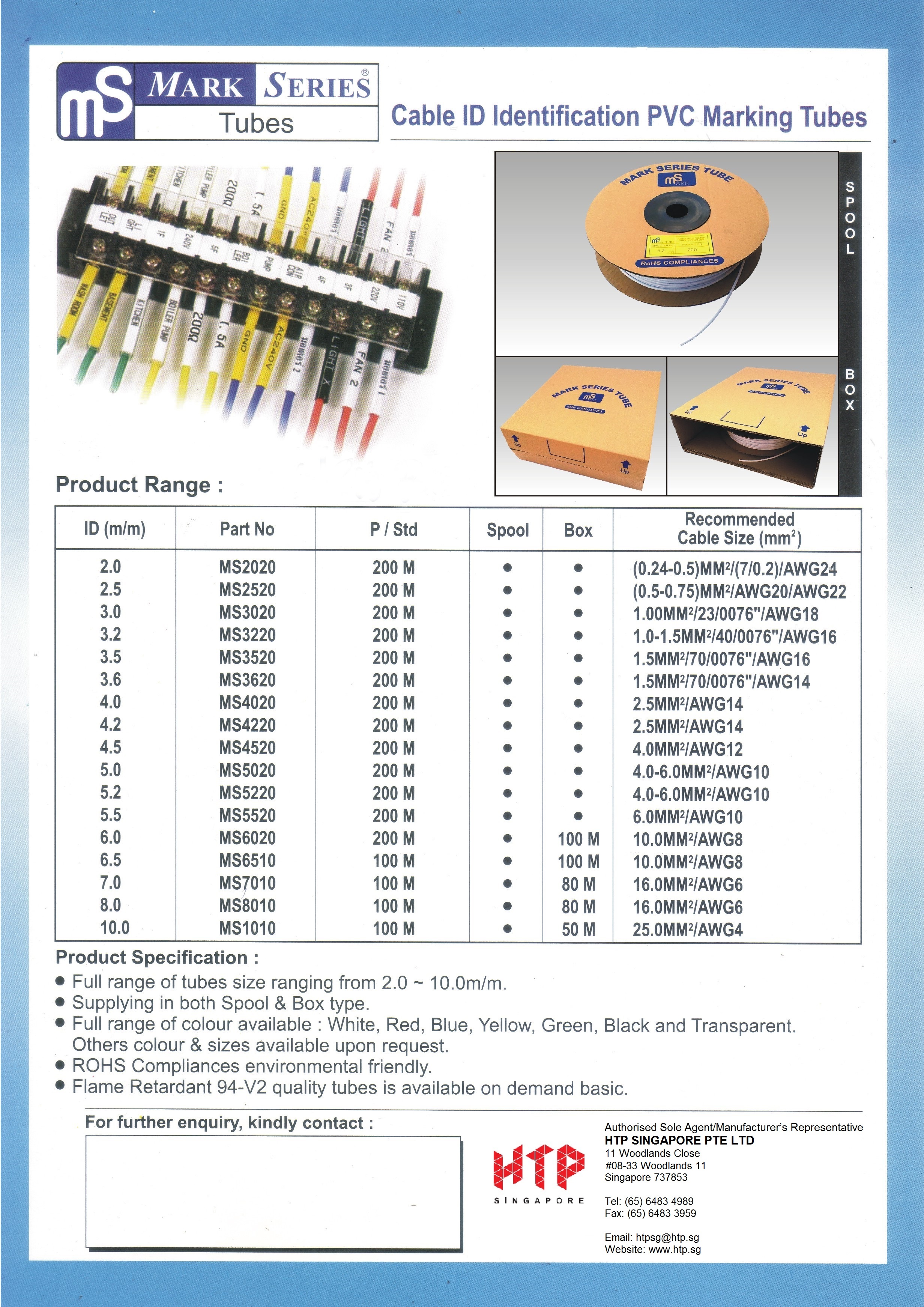

PVC Marking Tube (Non-Shrinkable)

PVC Tube (Non-Shrinkable) Catalog Download

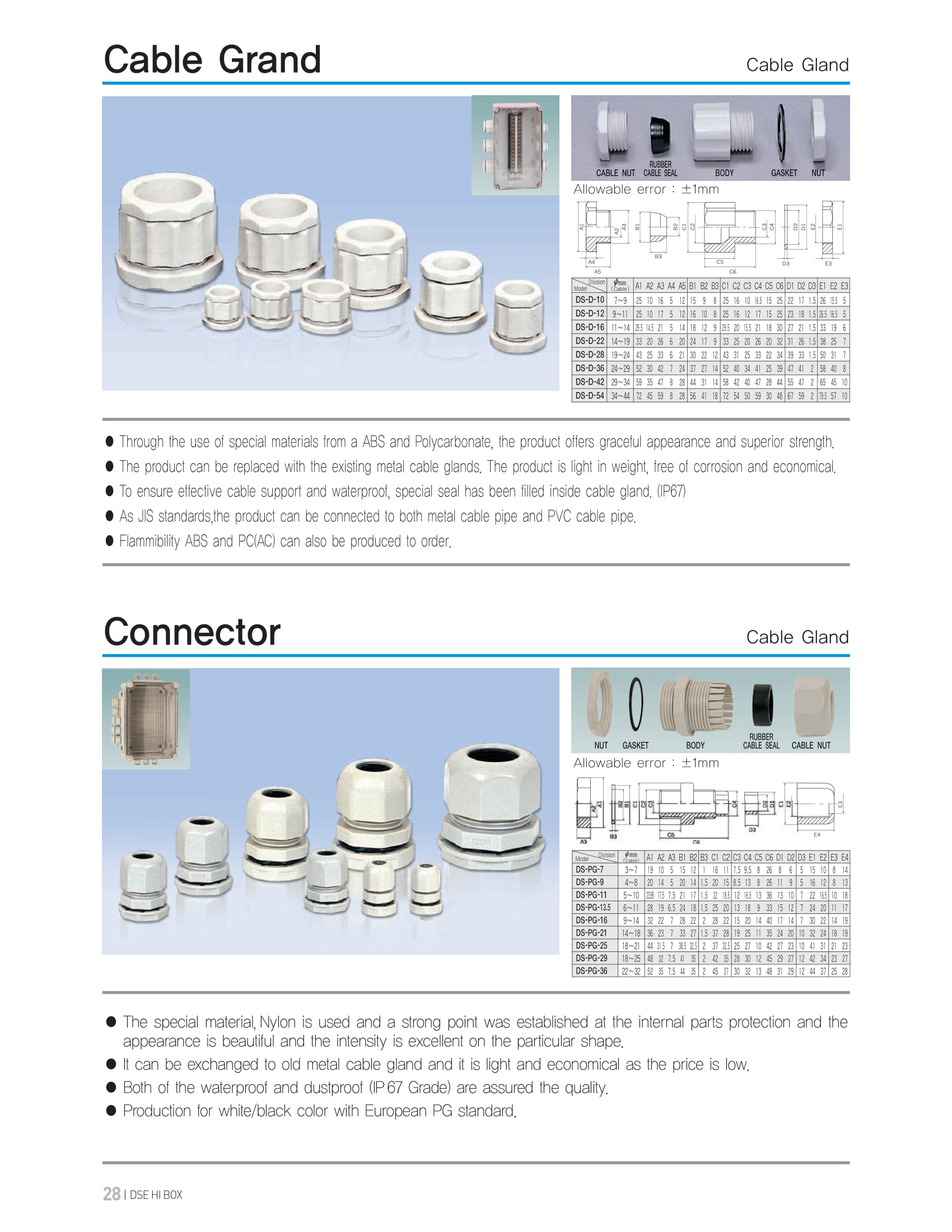

Connectors & Cable Glands

No description available.

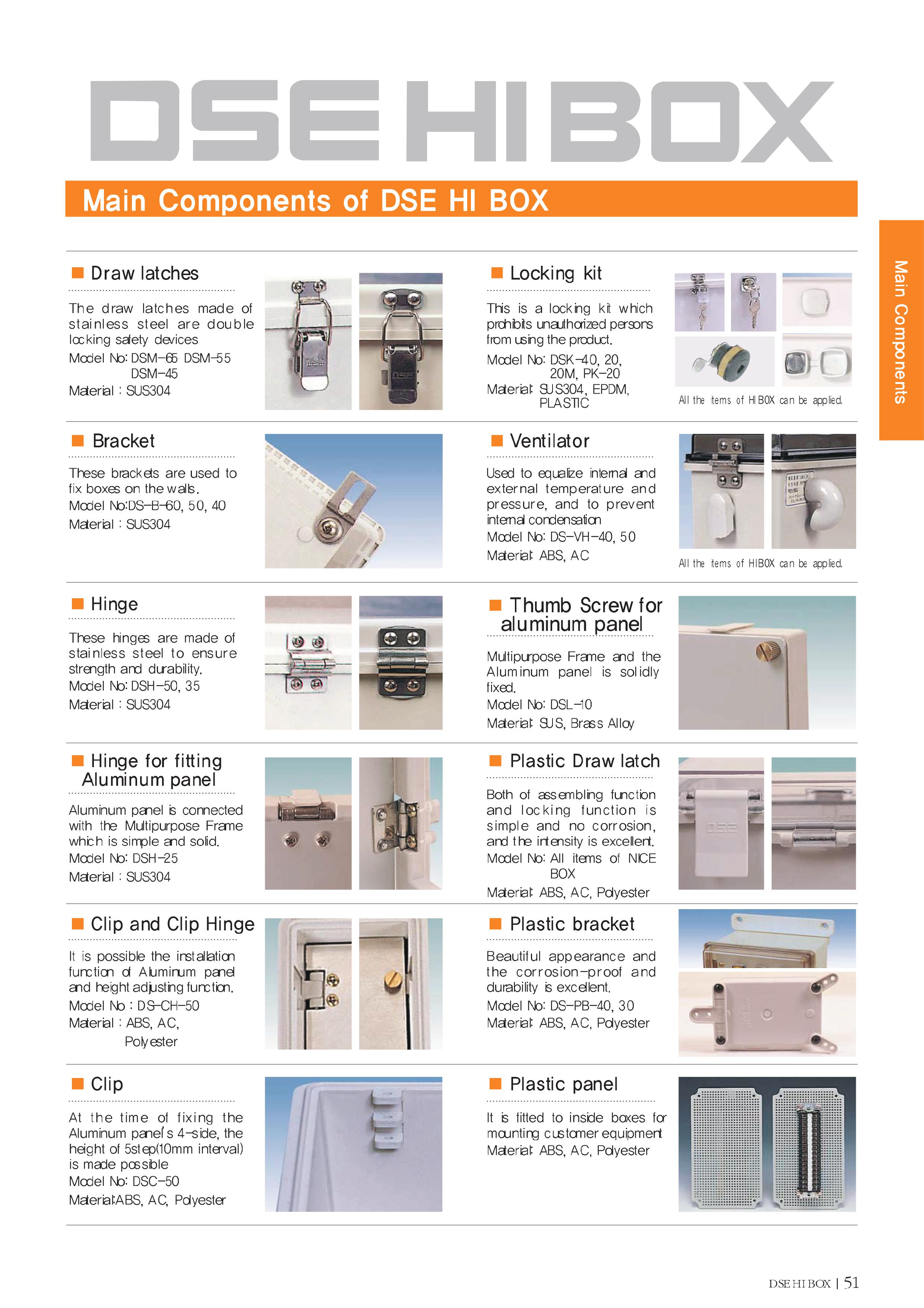

Accessories

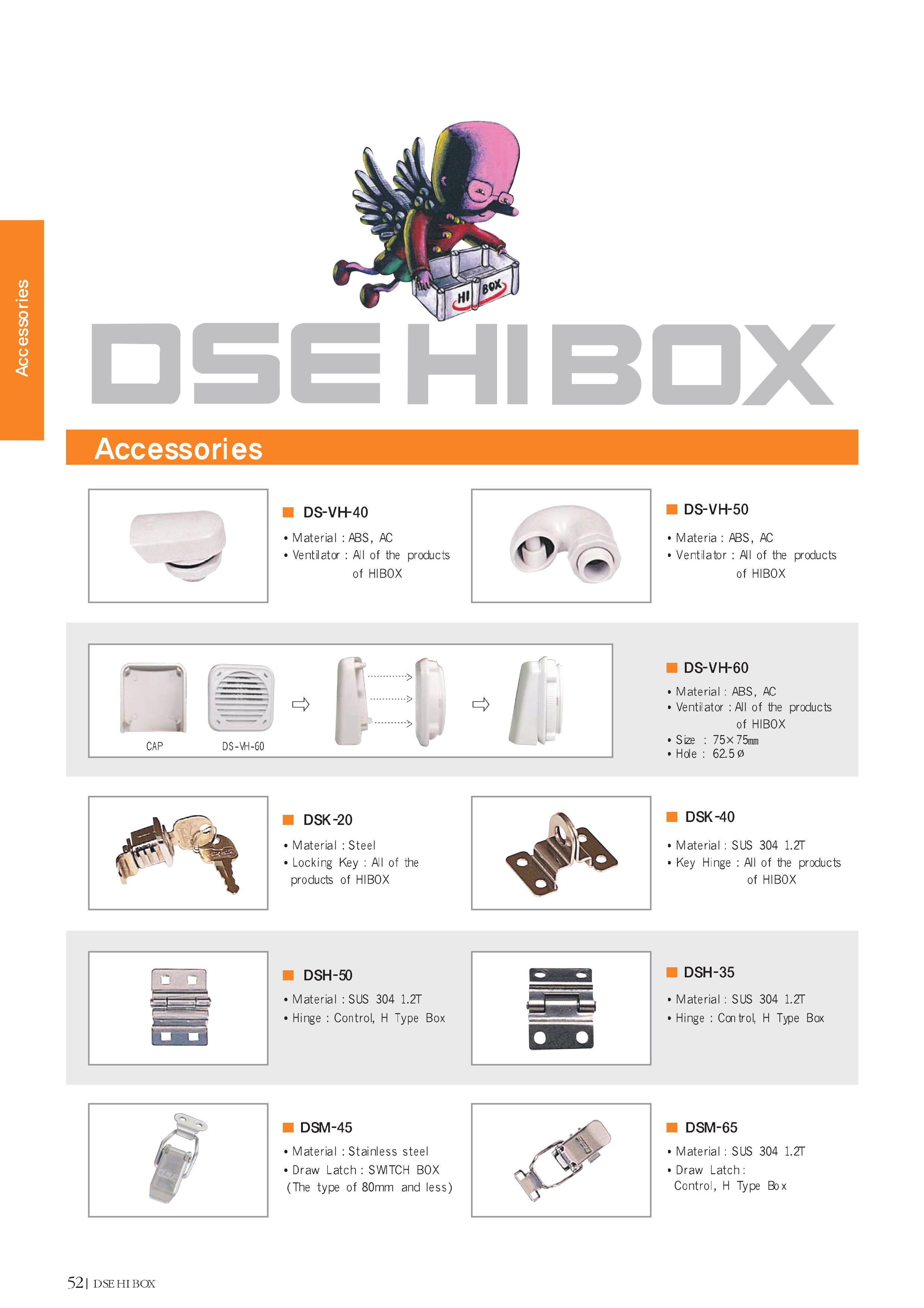

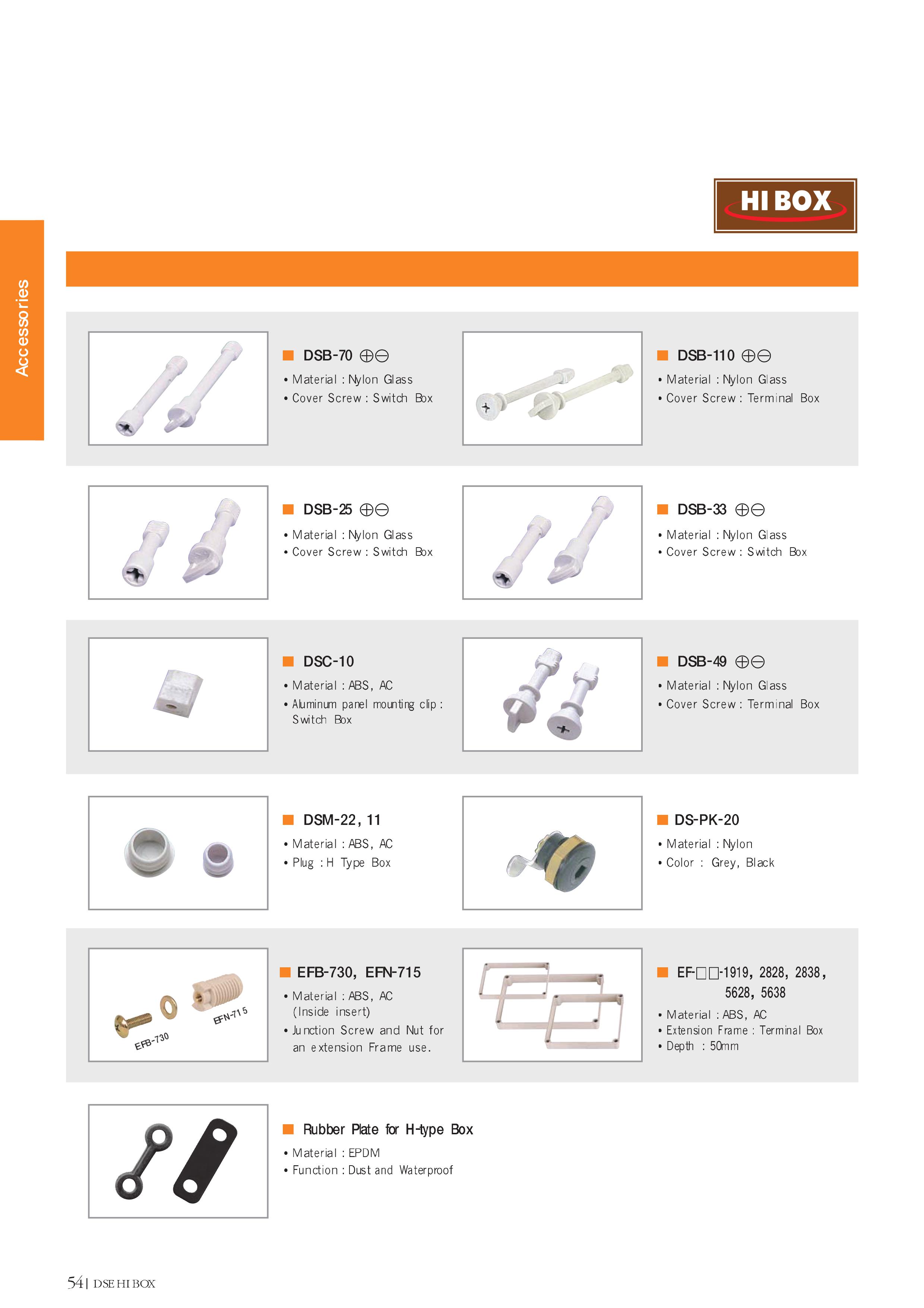

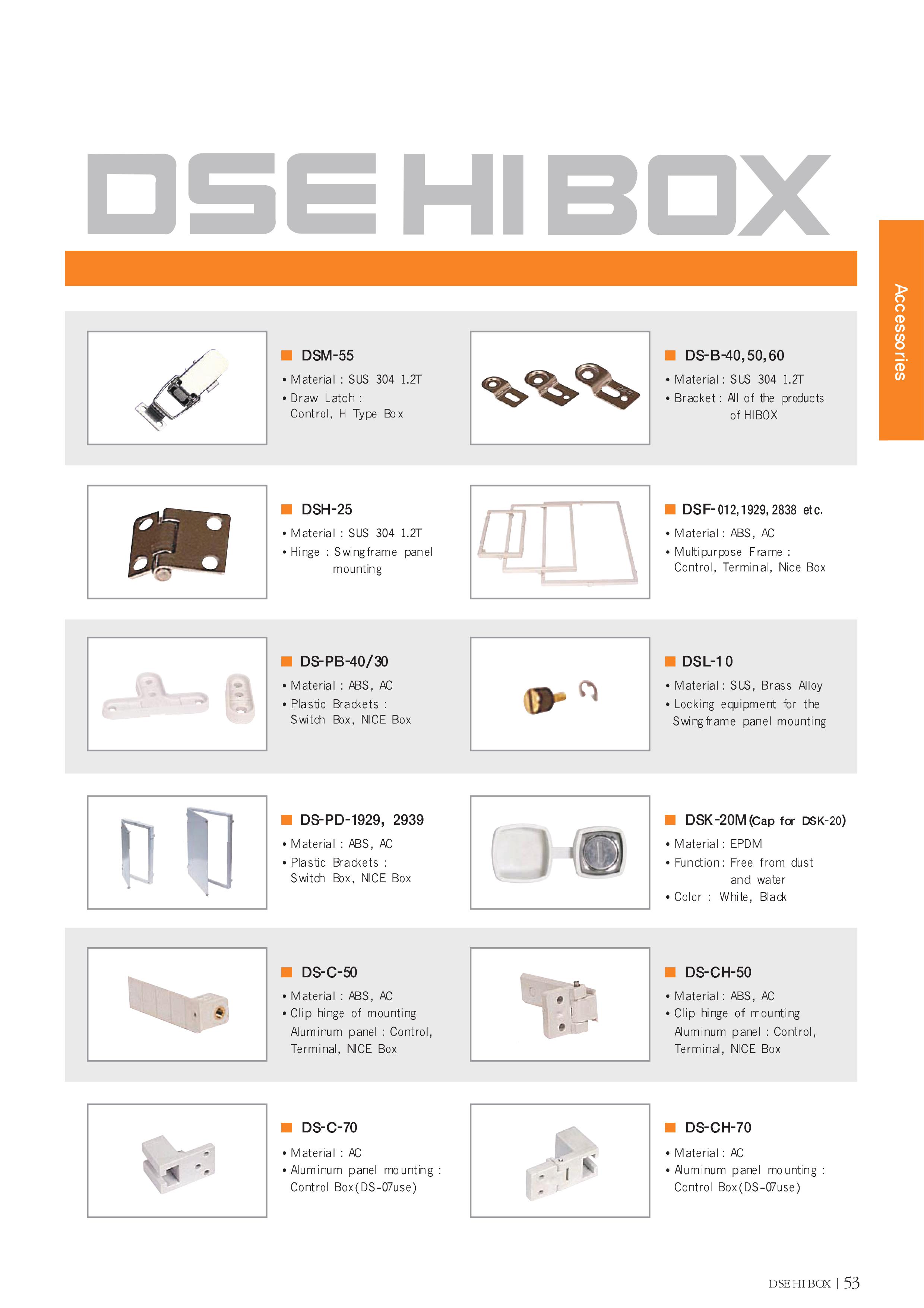

HIBOX -Catalogues FULL P52

Accessories

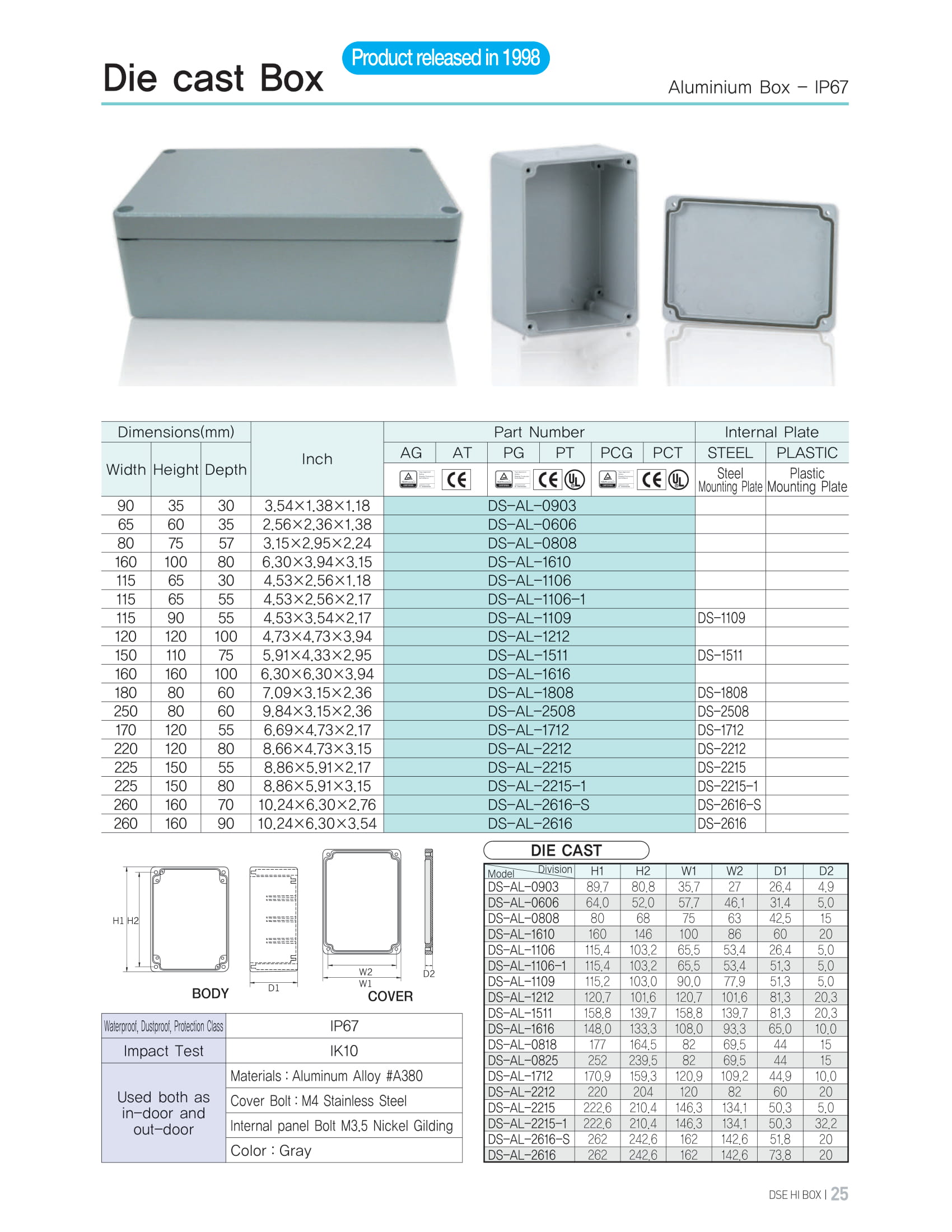

Die Cast Box

No description available.

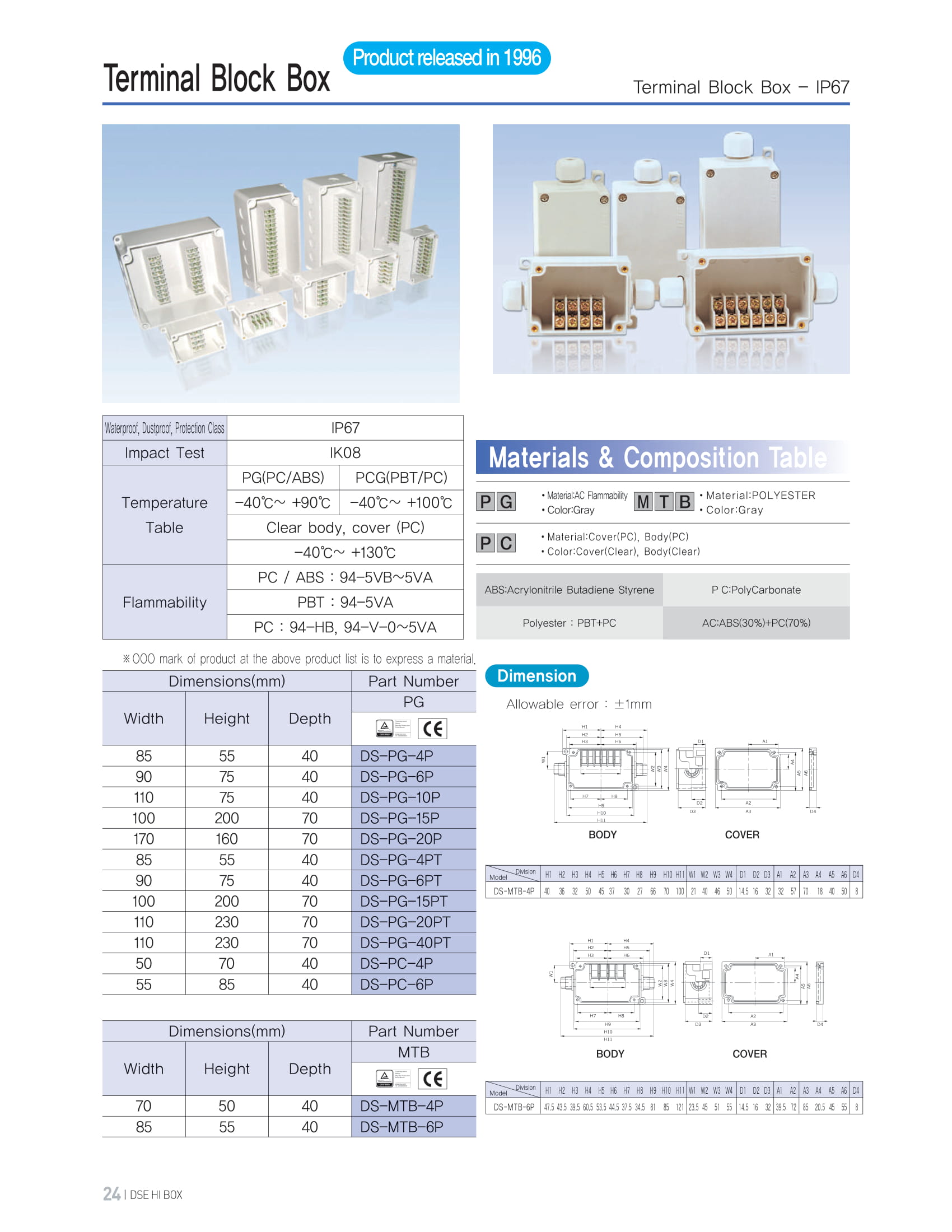

Terminal Block Box

No description available.

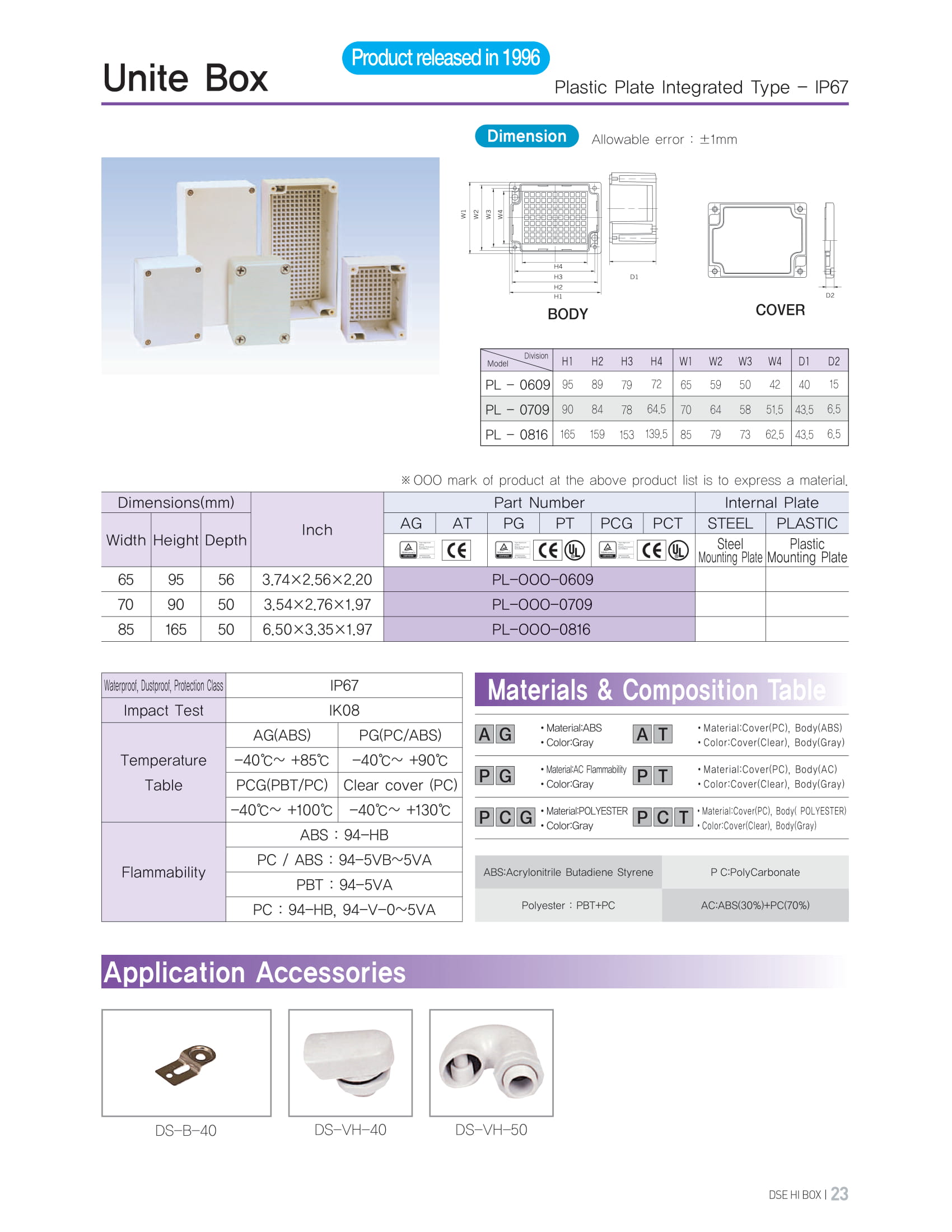

Unite Box

No description available.

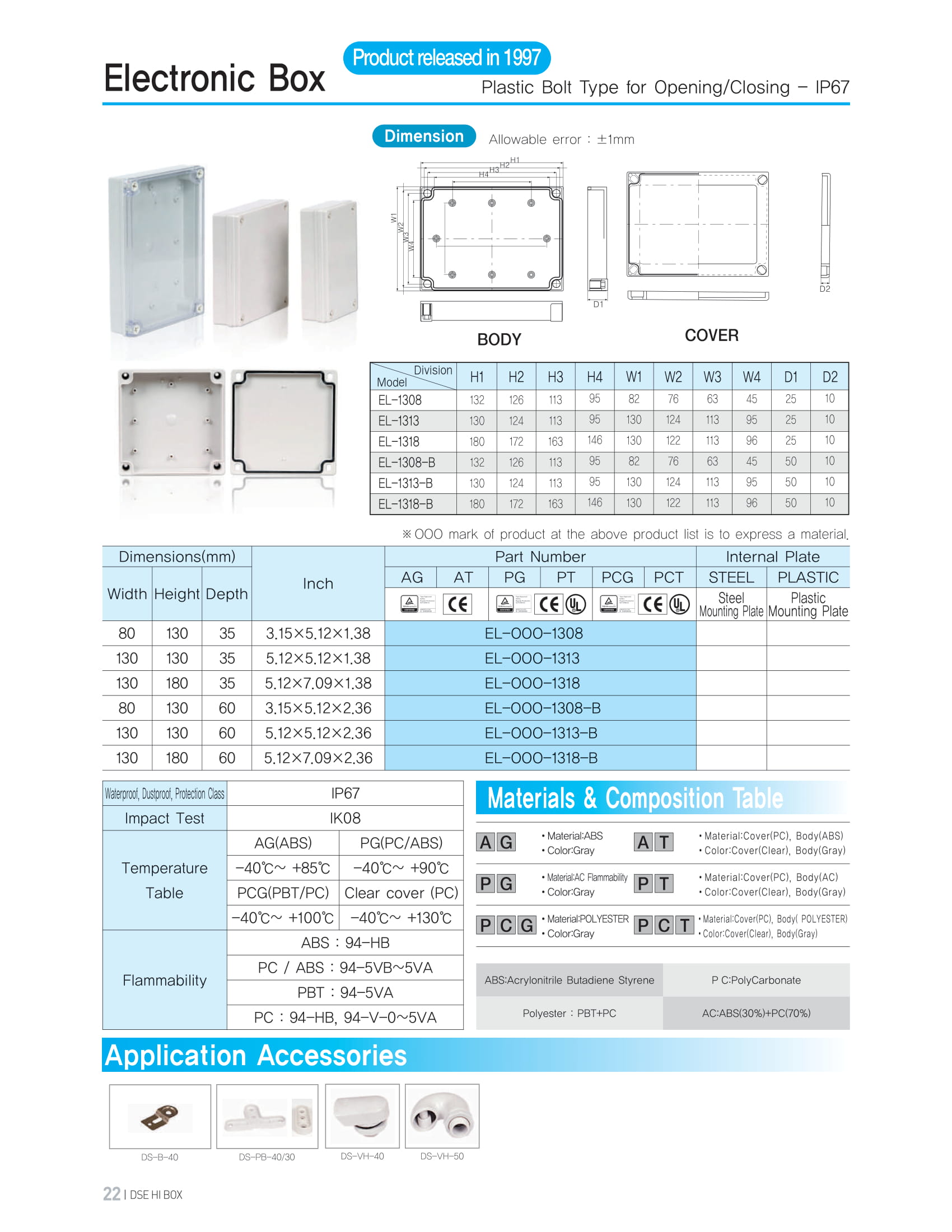

Electronic Box

No description available.

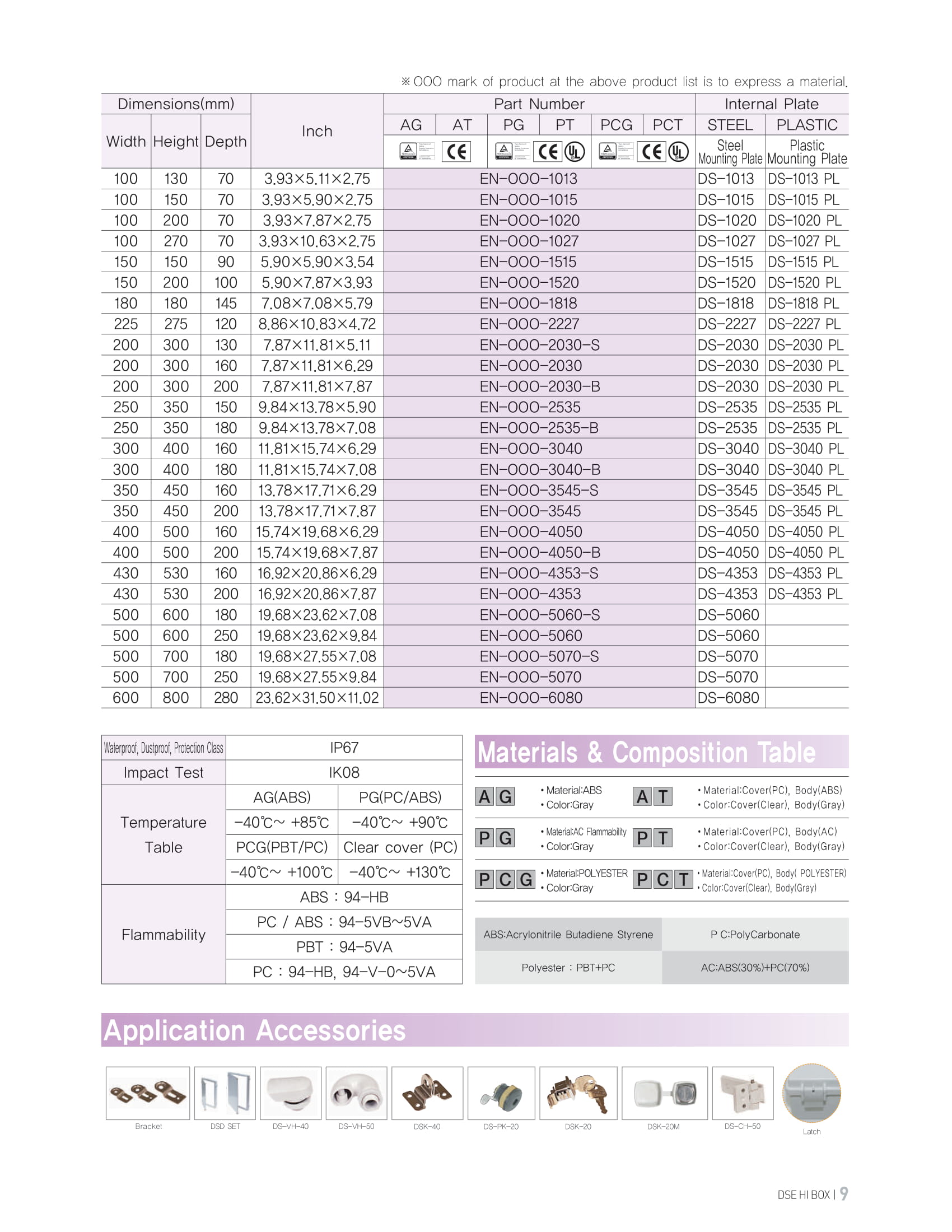

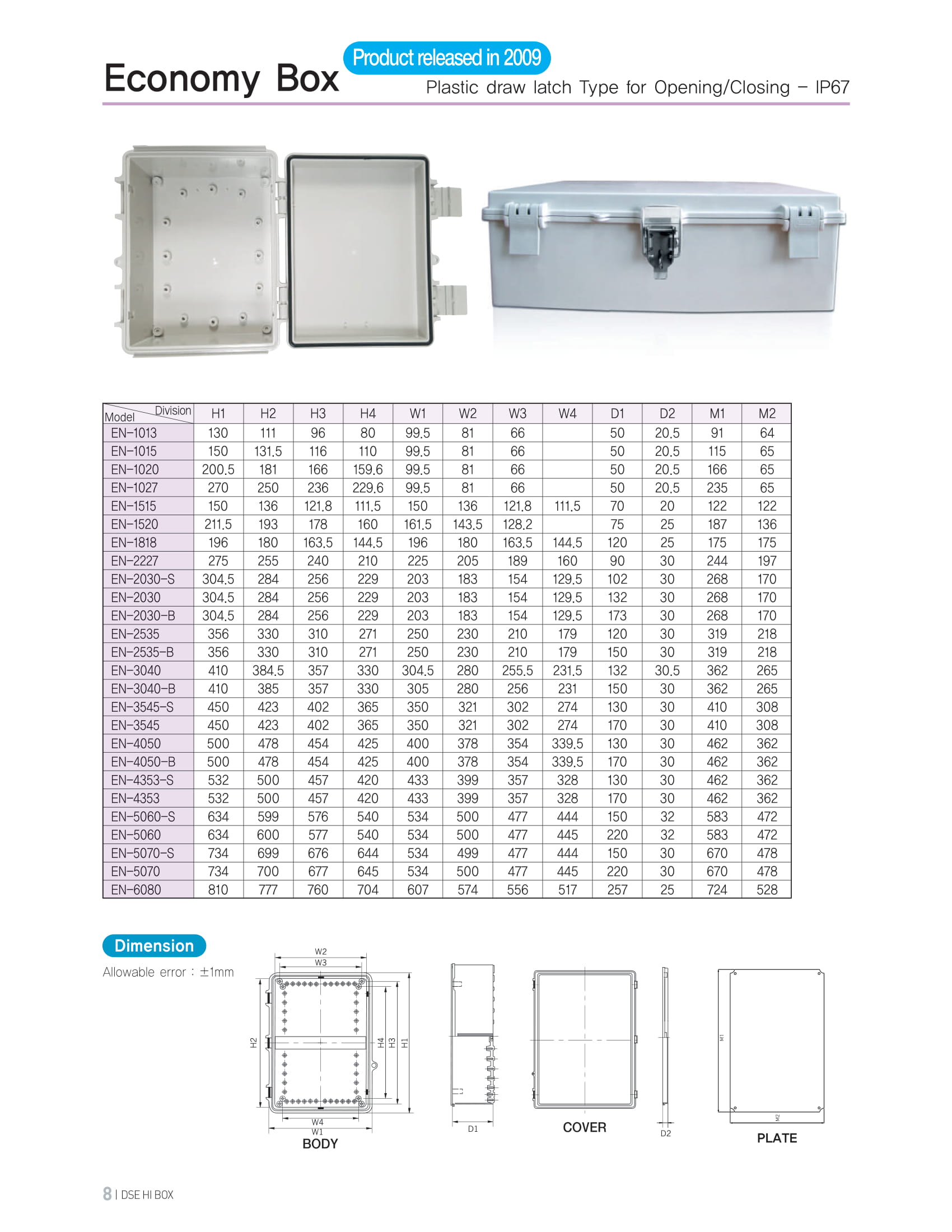

Economy Box

No description available.

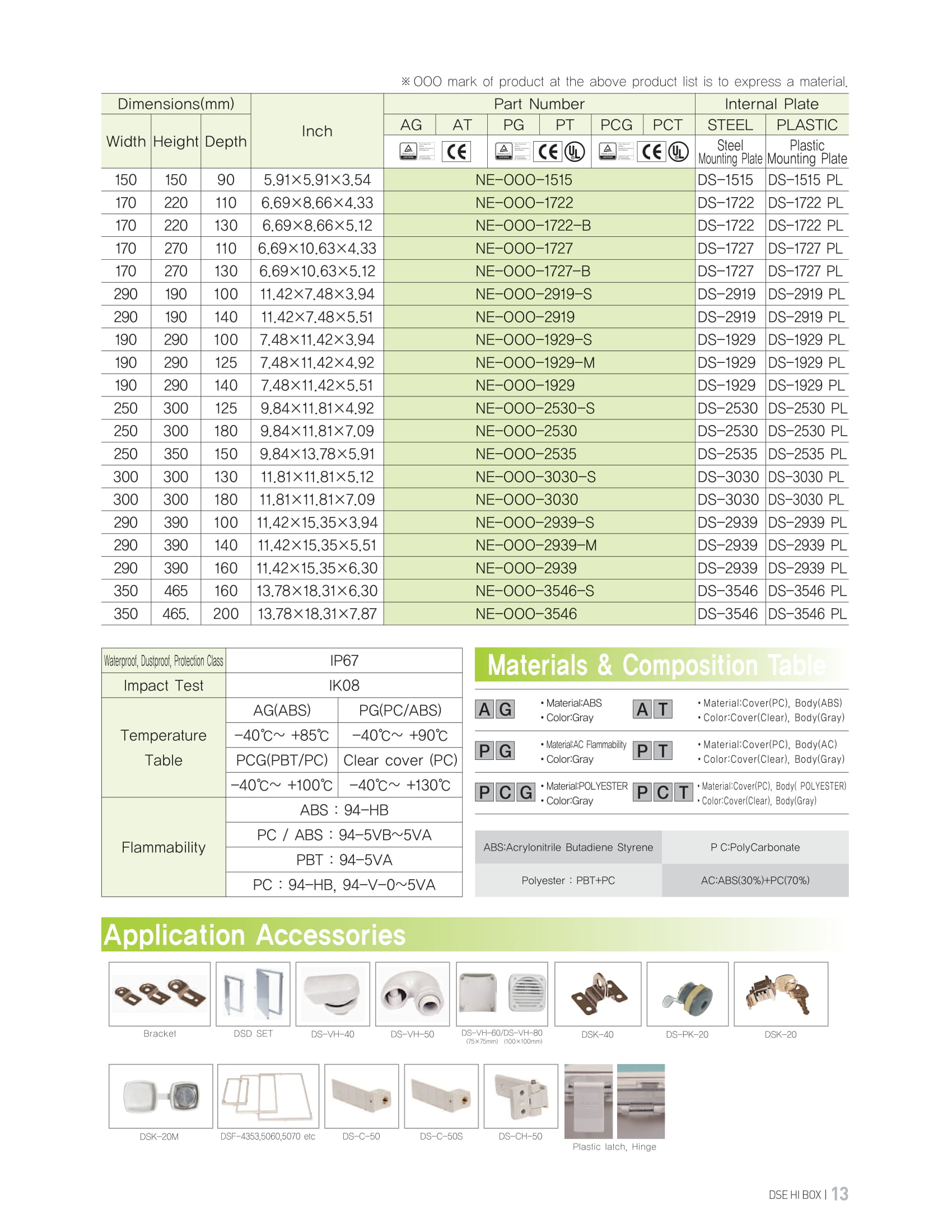

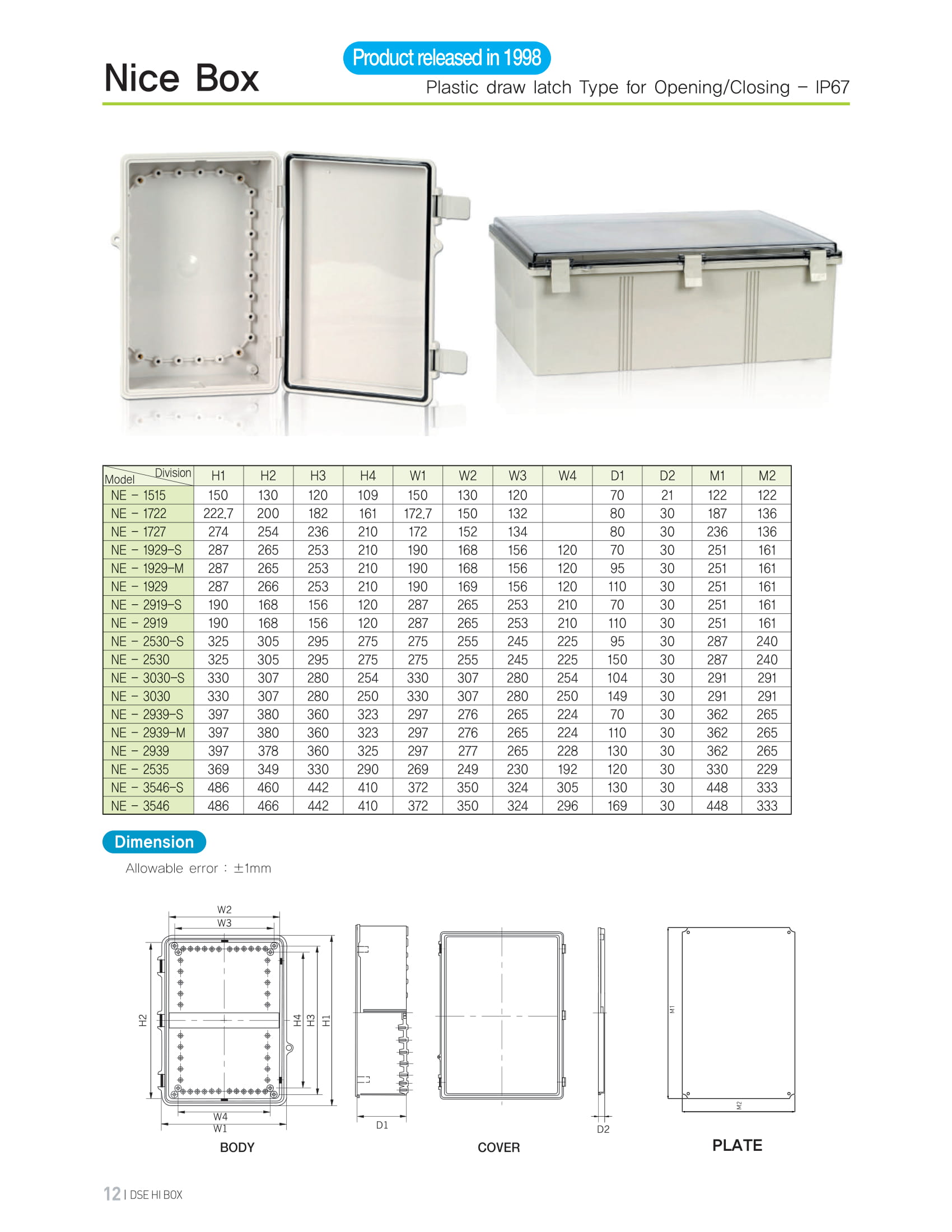

Nice Box

No description available.

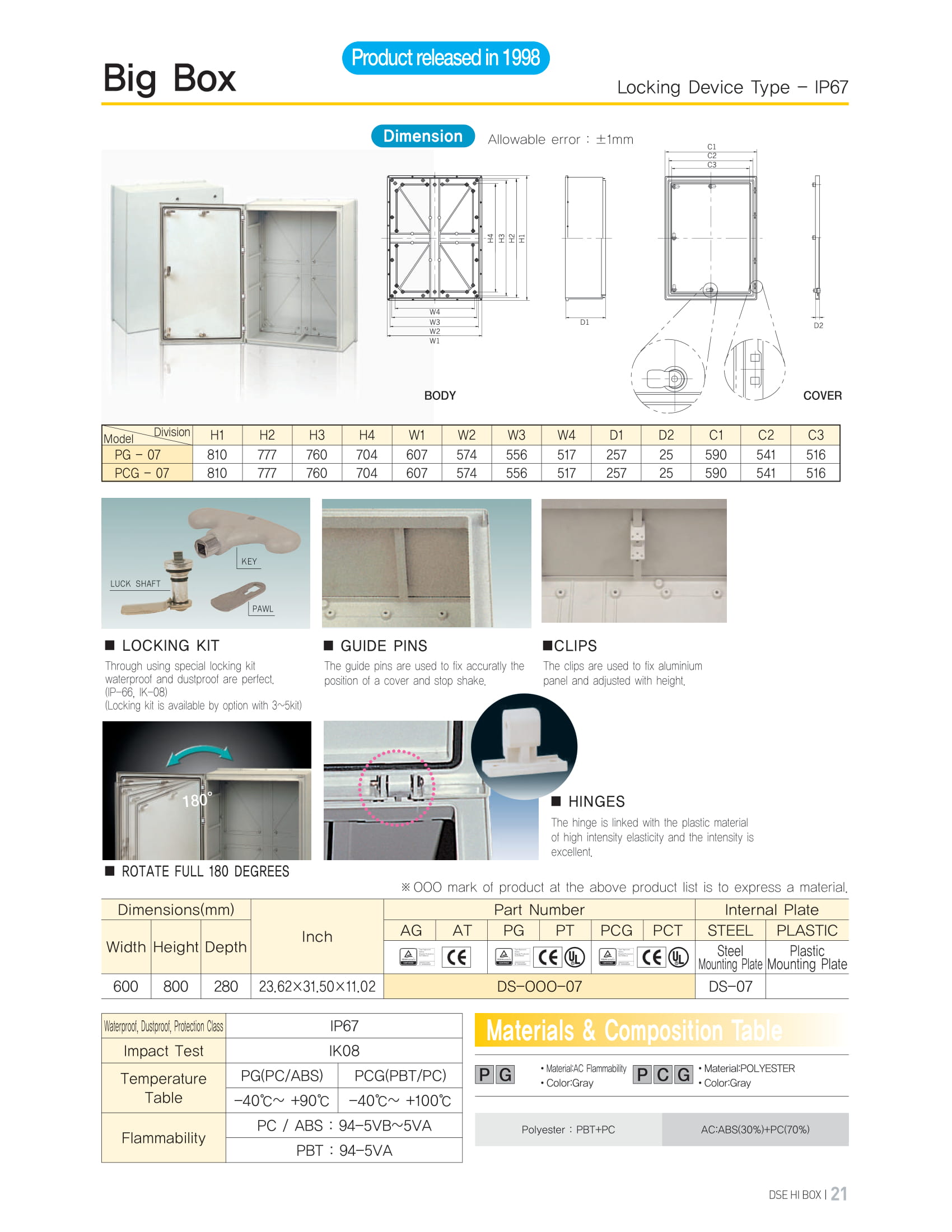

Big Box

No description available.

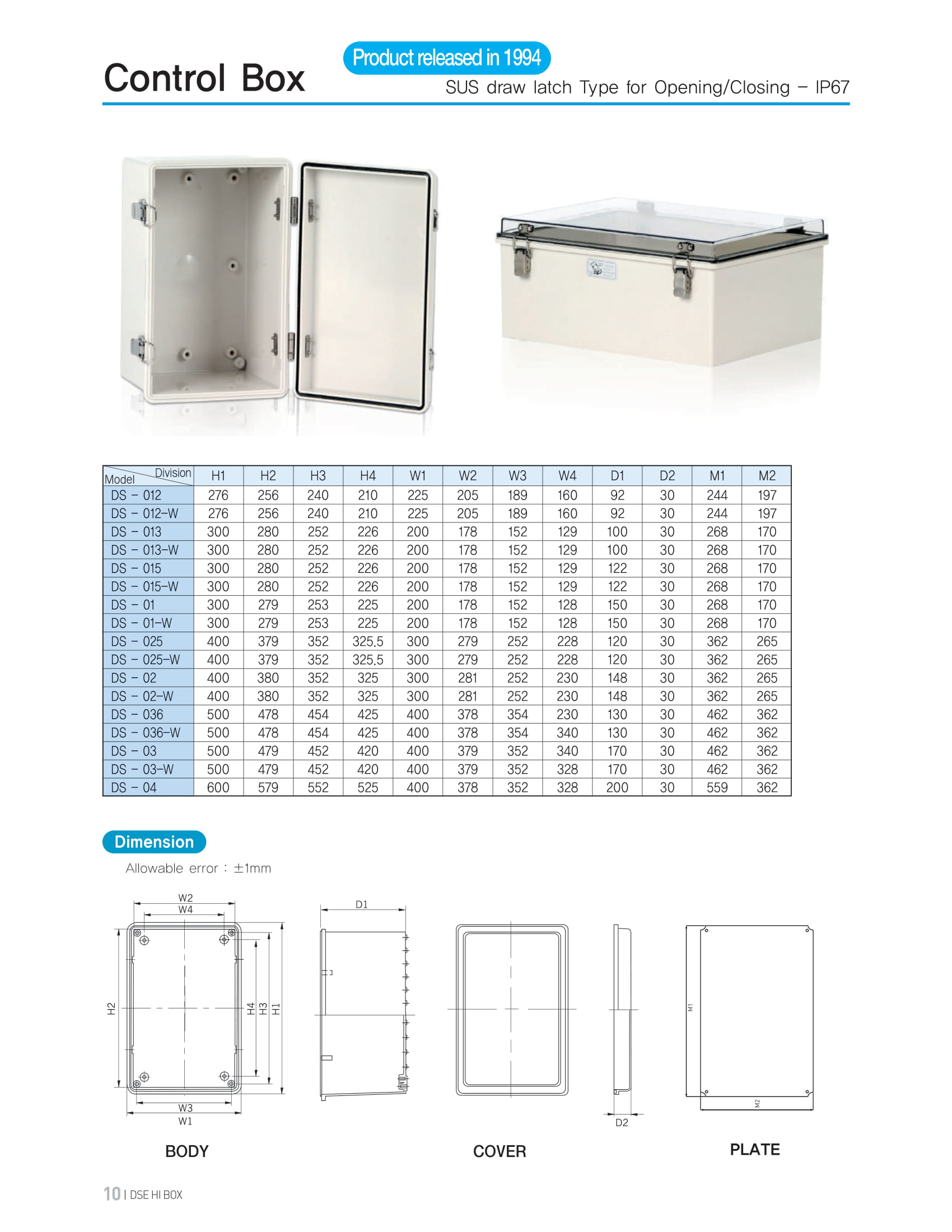

Control Box

No description available.

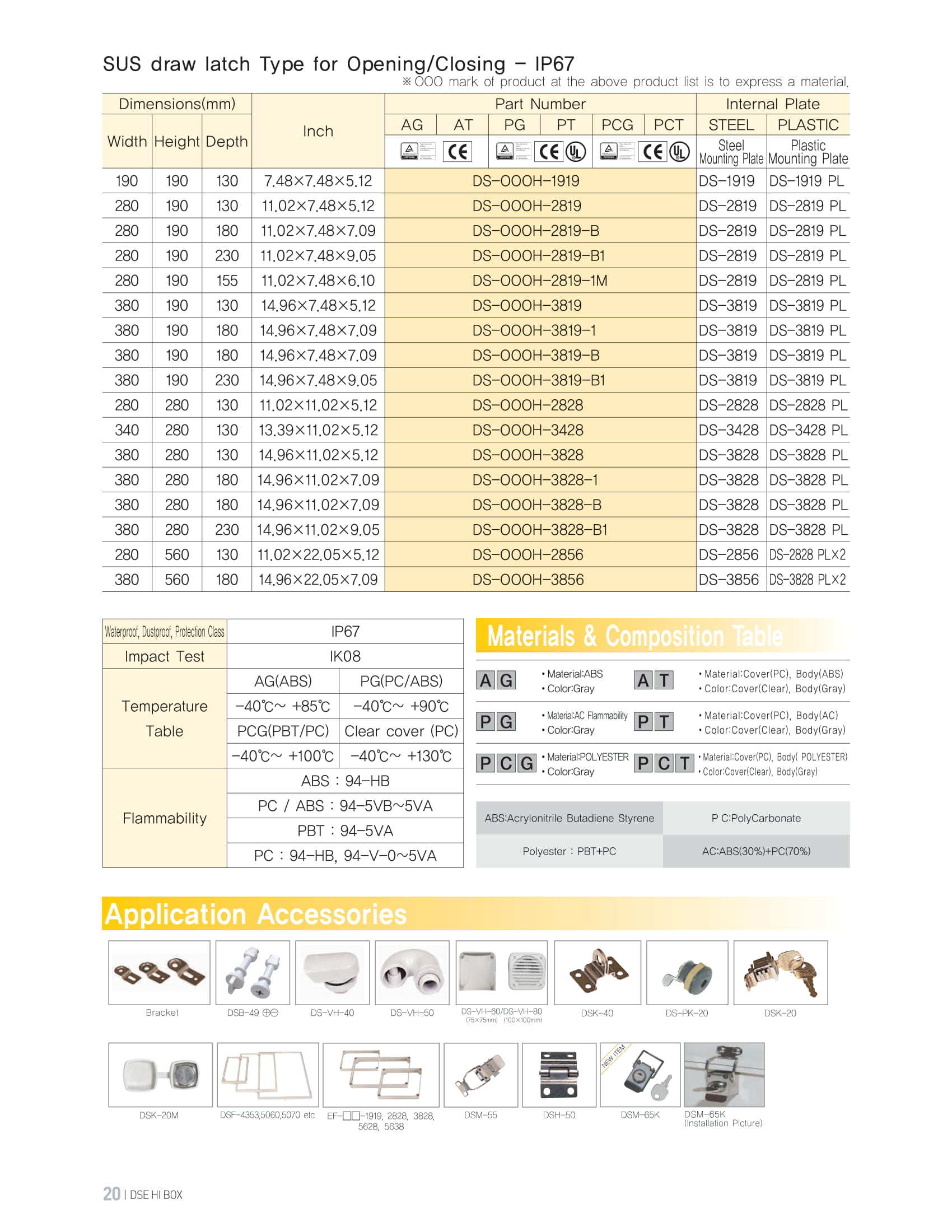

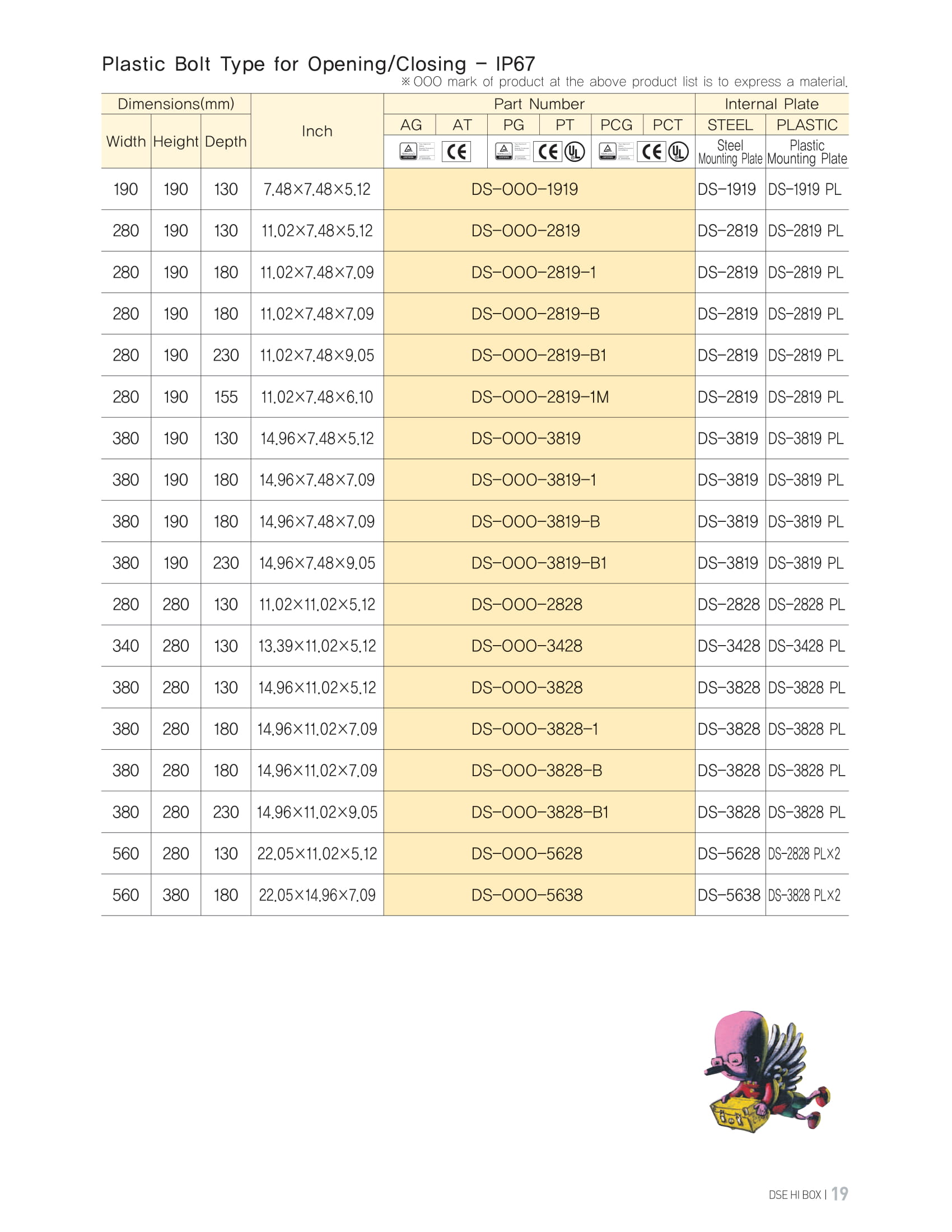

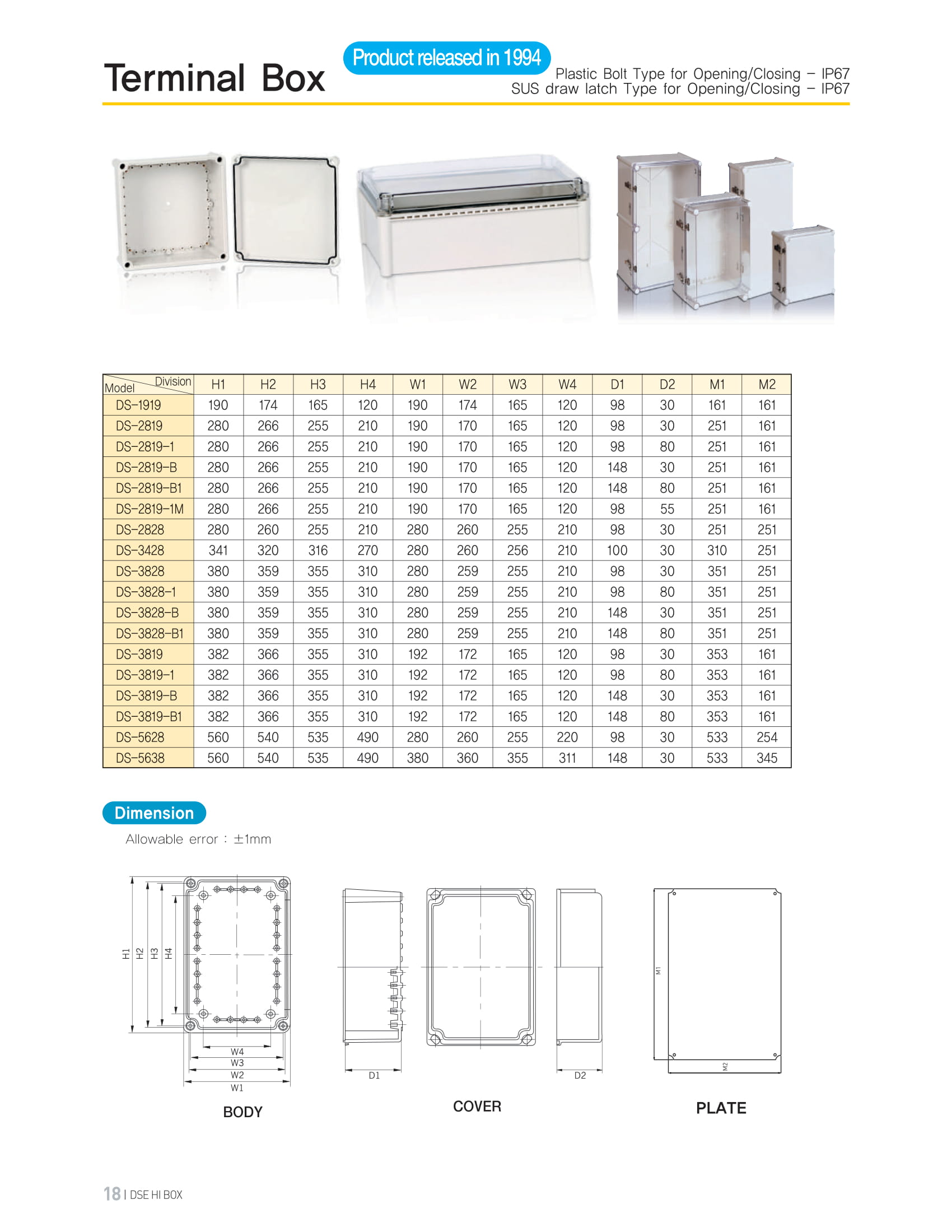

Terminal Box

No description available.

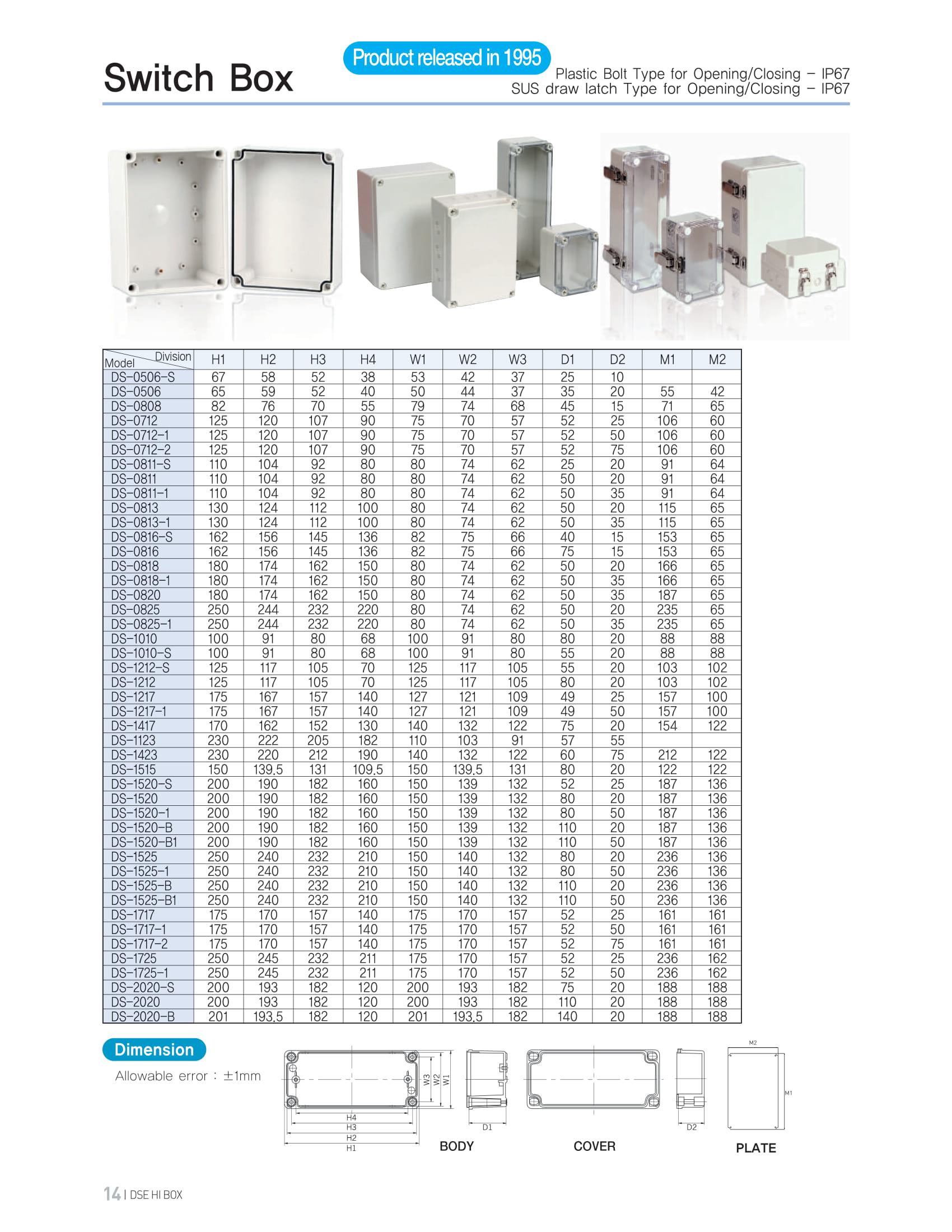

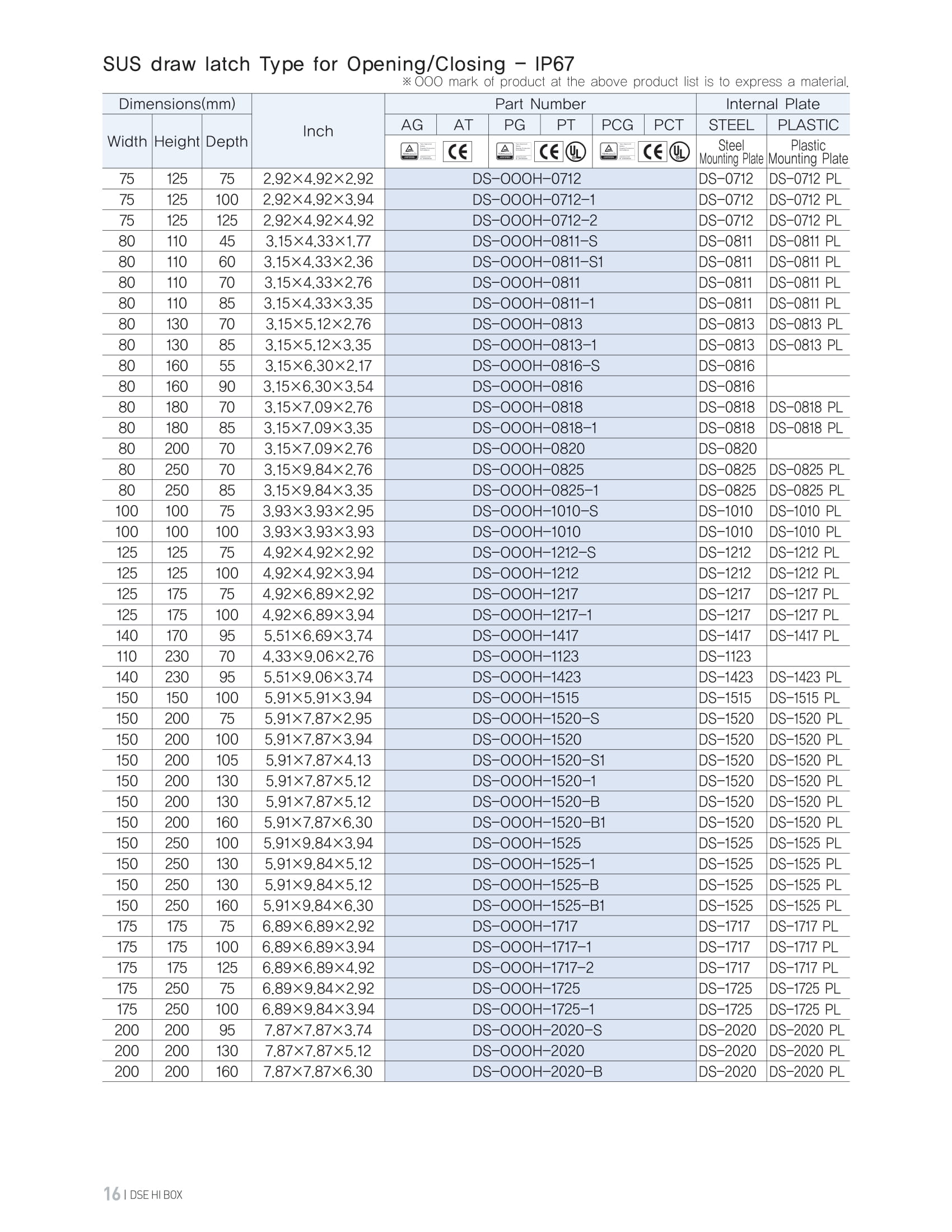

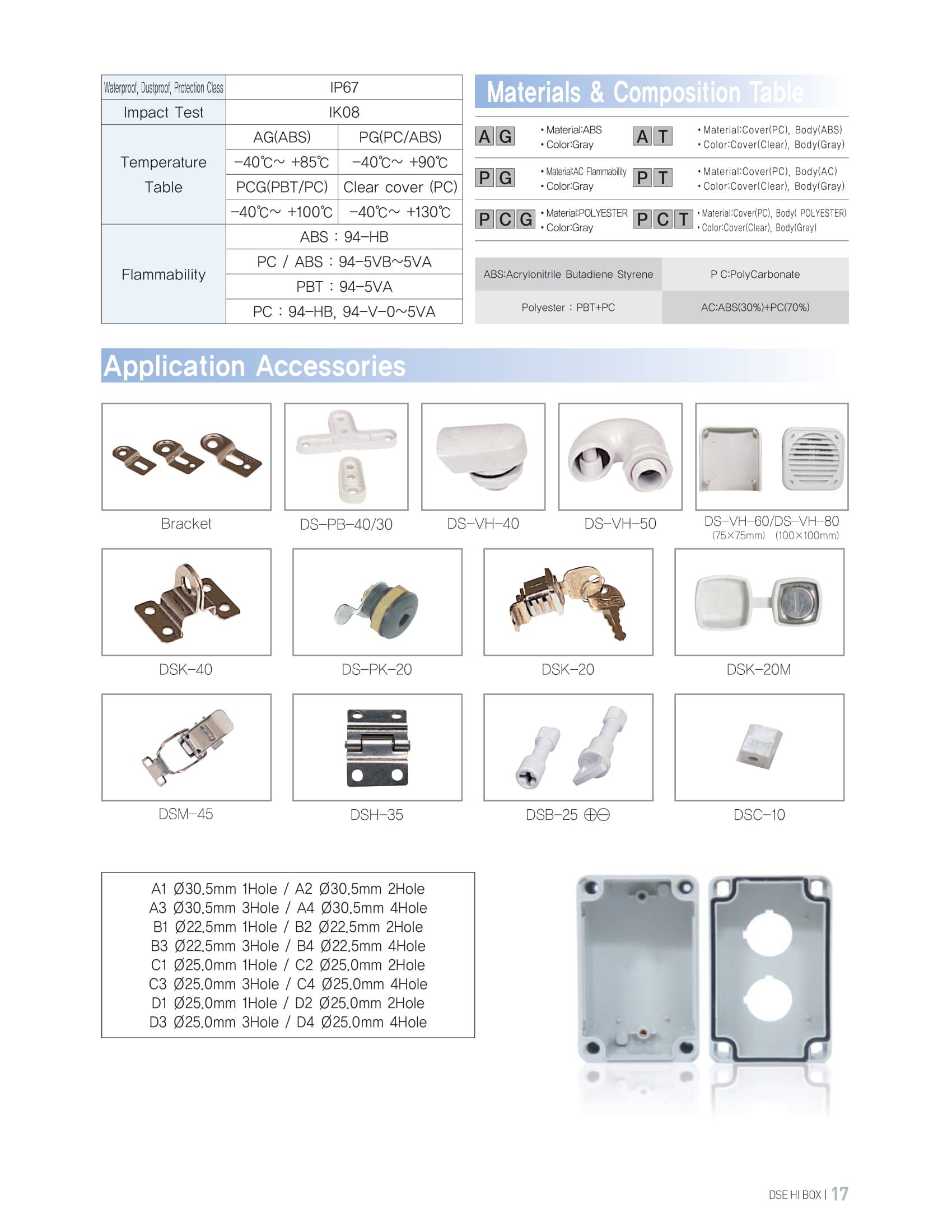

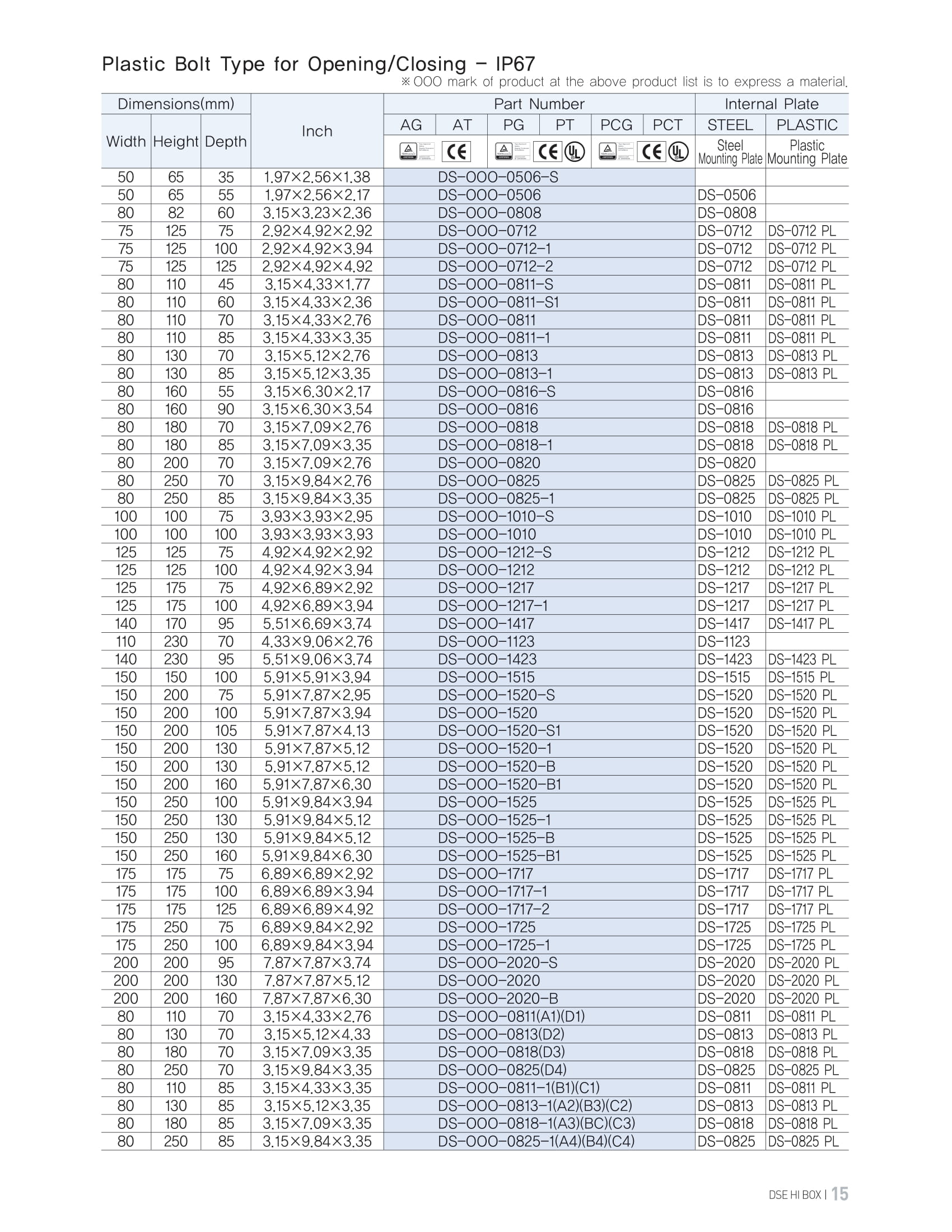

Switch Box

No description available.

HIBOX ENCLOSURE FEATURES

No description available.

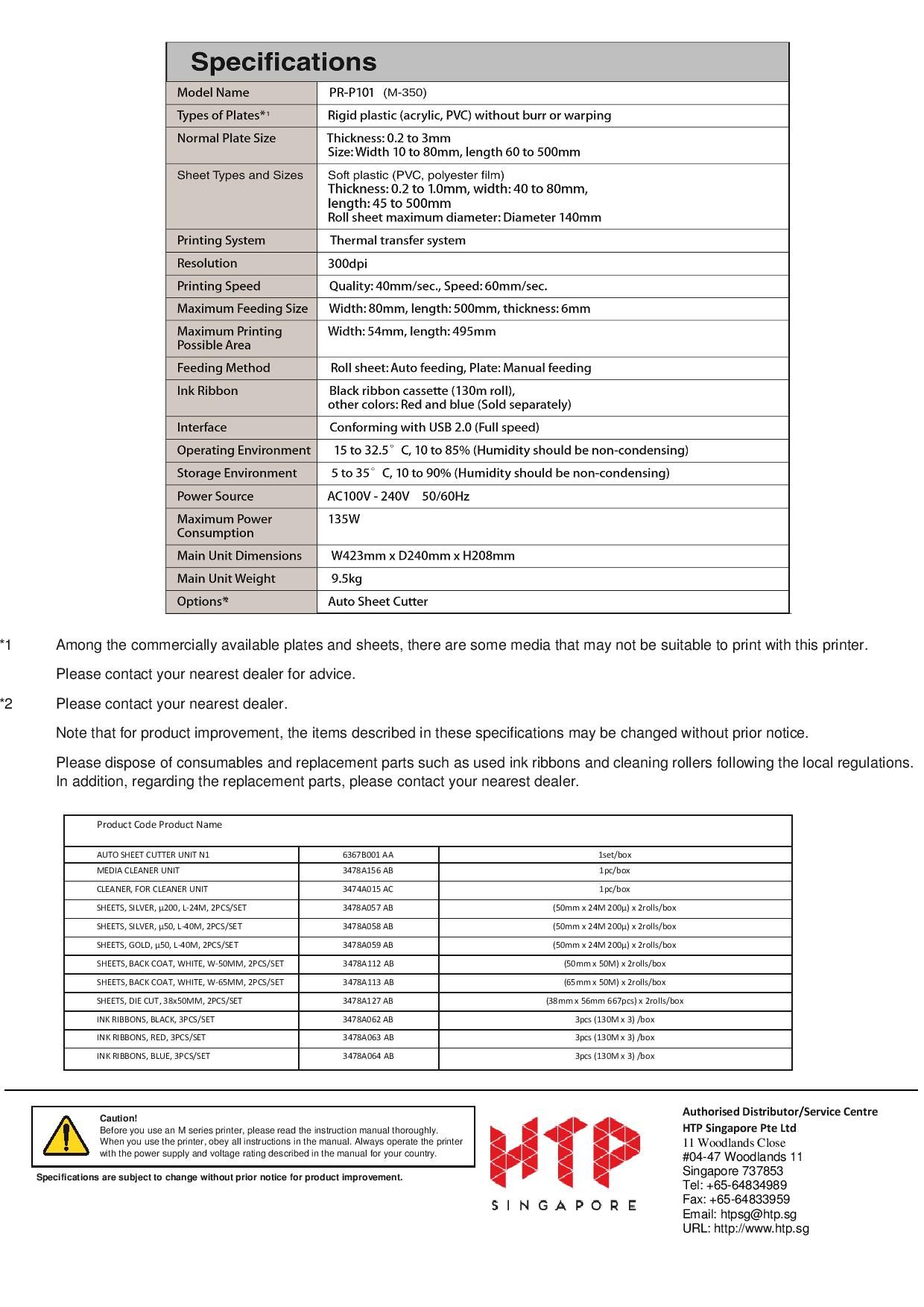

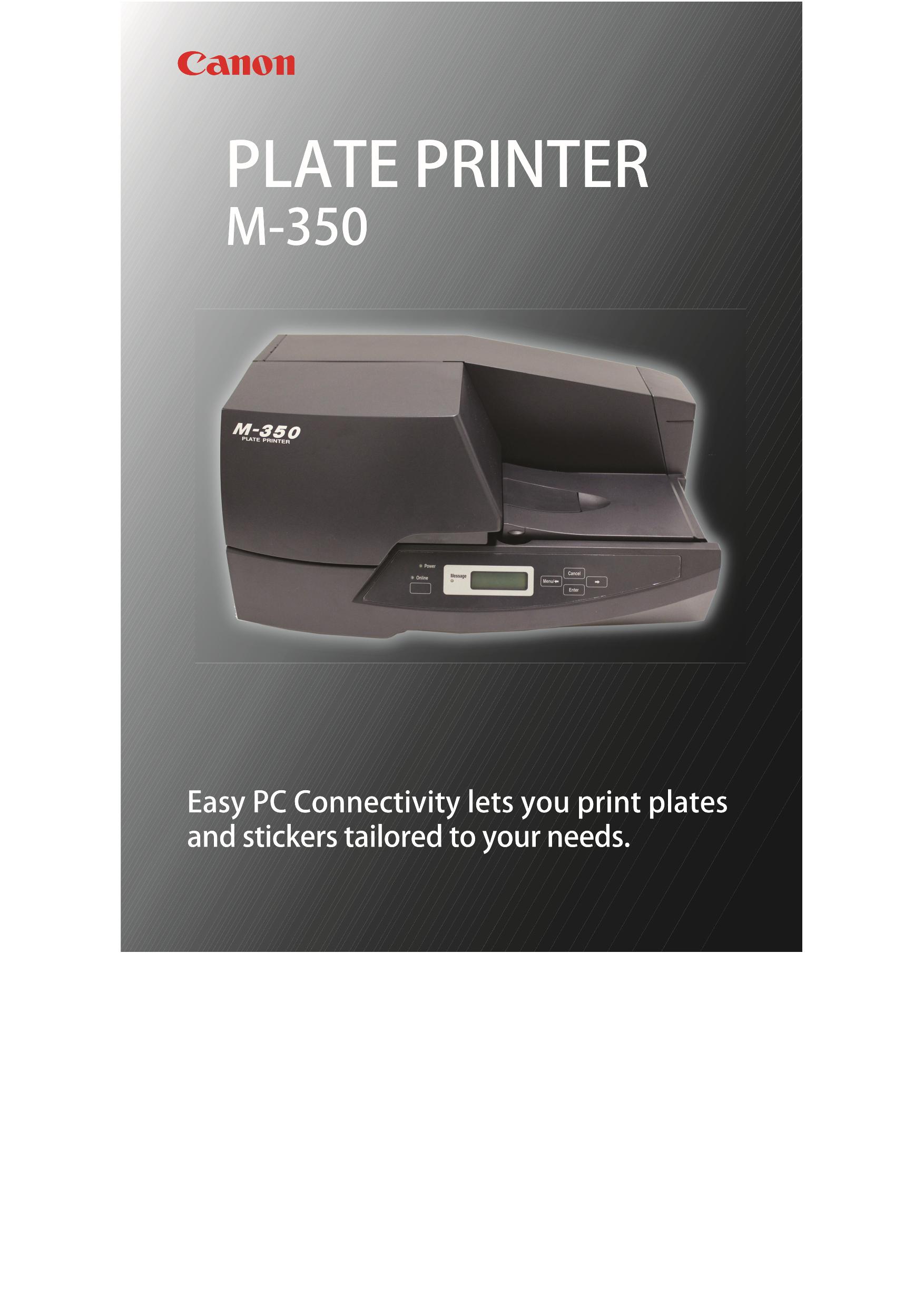

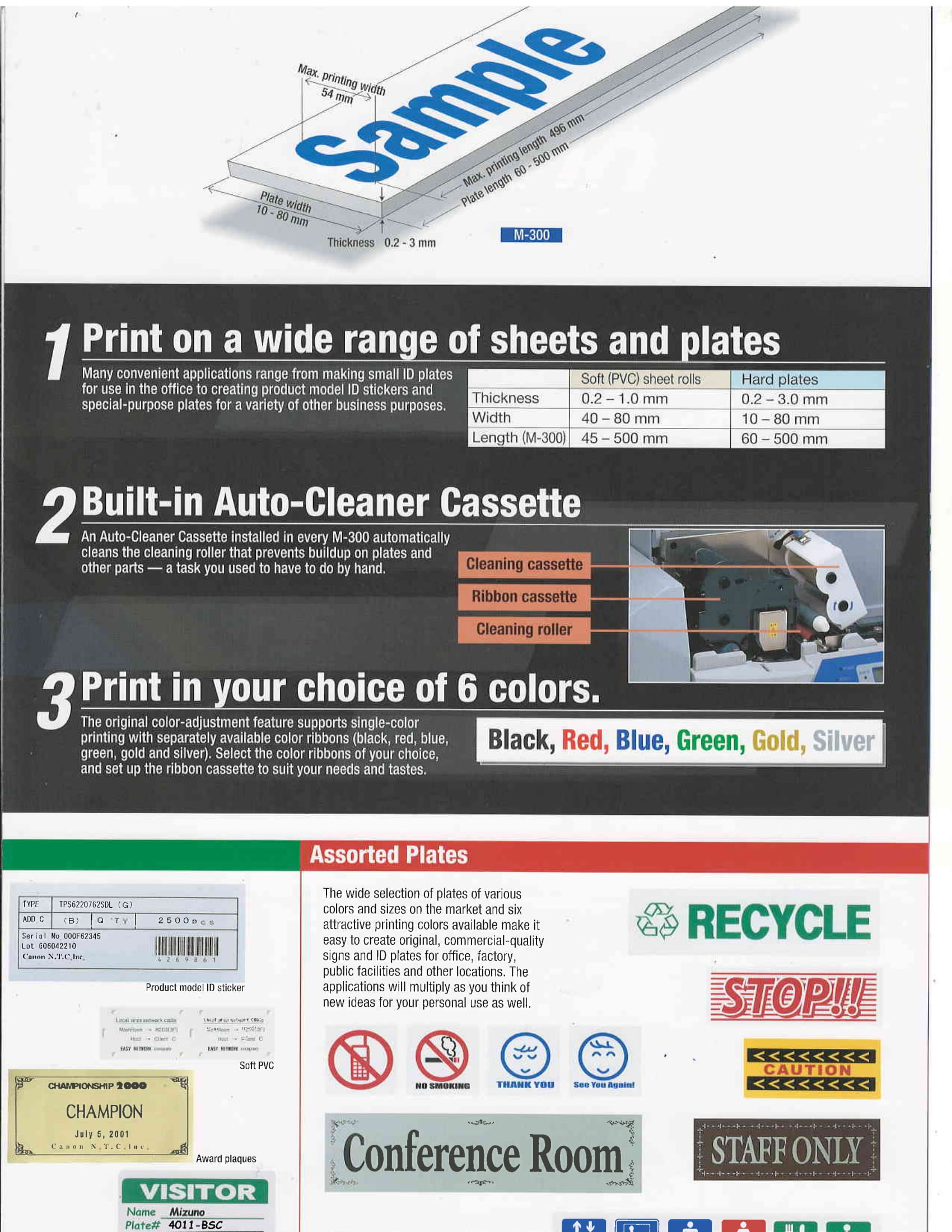

Name Plate & Sheet Printer

3474A015/3474A041
Cleaning Cassette
* Use for Model : M-350, M-300, Si2k,PP550 & PP500

Name Plate & Sheet Printer

Catalogue Name Plate & Sheet Printer Download

Canon ID Printer Mk2600/ Mk1500 (OBSOLETE)

Marking work of wiring essential to maintenance of production electrucal equipment and van production. LAN wiring and plant construction. On the label or tube to be attached to the cable, cable ID printers Mk2600/ Mk1500 is a marker dedicated tube that can be printed and signal name. Printing, such as marking plate and mark tube also print vividly and fast. I realize the cable marking smart.

Basic Information

Mk2600
Product Code: 3382B022
Mk1500
Product Code: 323 0B017

Feature

Cost performance difference comes out so as true

The functions that can be printed without waste or ribbon cassette low consumption cost, to the rear end of the tube. You can reduce the cost of creating mark tube.

It supports rich material

Marking plate and (commercially available PVC tube / heat shrinkable tube) Tube - a variety of materials, labels and wrap-around tape, you can print beautiful characters and symbols.

The PC connection kit supplied convenient data input large amounts of

It is possible to transfer data by connecting to PC with USB, it is convenient for data inpur of a large amount. Reads, in addition to the original lexisting files, files in CSV format is also available.

Canon ID Printer Mk2600/ Mk1500 (OBSOLETE)

Reduce the running cost of the ribbon cassette

Consumption cost of the ribbon cassette series of Mk 0.17 just $ 10mm per ※ . In comparison with the printer other similar manufacturers, I realized the low cost of less than half. The more you use it, the difference will appear in the total cost.

Reduce the waste of printing member, efficient use of consumables

Mk series eliminates as much as possible the waste of printing member. Tip is small, the rear end is lost. Because it can be used efficiently consumables, and will help to long-term cost savings.

Best-in-class ※ speed and printing precision of

Even if the marking tube of mass is needed as soon as possible, the fastest class 40mm / second tube as a portable printer type if Mk series of high-speed printing ※ The high-speed printing. In addition to output is smooth from the setting of the print media, I greatly improves the work efficiency of the total.

I realize the printing beautiful rich material

In marking the traditional tape and by the built-in tag, you may print disappears in the heat and rubbing. Mk series adopts a thermal transfer system with excellent weather resistance. Print high-quality can be tape or tube, on the label.

Tube

It can print directly on PVC round tube on the market. The finish is so beautiful high precision printing, management efficiency will increase. The Mk2500, inner diameter 2.5mm ~ 6.5mm, Mk1500 can be printed up to the thickness of the inner diameter 2.5mm ~ 5.2mm.

Heat shrinkable tube

It cope with the heat shrink tubing on the market. It is possible to identify without after printing, even shrink the tubing with heat, or disappear characters or blurring.

Marking plate

By using the attachment option also supports printing on a commercially available marking plate. I can be set up to 2 ~ 150mm the print width. I can be diverted to the tube to create print data. In addition, I can prevent the displacement of the continuous-long printing in the printing correction function.
Support only Mk2600※

Label

Label for pasting into other devices switchboard is also printable. Minimum 1.3mm font ※ Because I can print from, ability to respond in the field is different.
1.3 mm font support only Mk2600.※

Wrap-around tape

Since the transparent laminate to protect the printing surface, you do not have to worry about character disappears. In the tape type, I wound to cable connector already attached.

The high-precision print with advanced correction function (only Mk2600)

To create a register plate fitted to the length of the terminal block is a thing difficult unexpectedly. It is equipped with advanced correction function in Mk2600. Correction of length, so that can be specified in units of 0.01%, I can prevent the displacement of the continuous-long printing.

※The actual value correction will be an approximation of a multiple of 0.085mm.

And flexible to the needs of the site

The ability to fine-tune the display, label and mark tube adapted to the target marking can be created.

Compatible with hiragana, kanji symbol input

It can choose the input mode of the three "wonder", "alphanumeric" and "Roman alphabet". Input symbols, Kanji conversion of kana characters can be.

Enabling continuous / serial number printed

You can print repeat a specified number of times the same character, you can print more number automatically. We do not need any tedious glue numbering work.
※maximum possible value of the serial number printing is one digit "9" "99", is Mk1500 Mk2600 two digits.

Rich display pattern

Display of size and spacing of the characters of course, framework, 3-line display ※ 1 , vertical / horizontal write switching ※ 2 I can use the various functions, such as underscore display.

※ 3 line printed Available only Mk2600 specify character size 1.3mm, full-width alphanumeric.
※ vertical side write printed, corresponding only Mk2600.

Smooth detach the Auto cut function

I can easily cut by hand cut because it contains the tube that has been printed. Set to "all off", "half-cut" and "the presence or absence of cut line printing" is possible.

Characters are easy to read in bright LCD display

Character is easy to see in (160 × 64 dots) and graphic display with bright LCD.

Can type display and remaining amount display of the ribbon cassette

Type display and remaining amount display of the ribbon cassette is available on the display. The cumulative number of distance printing machine body, display of cutter cumulative number of operations is also possible

Printable putting. Excellent mobility "carrying bag"

We offer a carrying bag convenient to carry dedicated to the site. I protect it from scratches and dust the equipment in the urethane. In addition, the possible use remain housed, is printing. I will support the work efficiency and smooth space-saving.

※such as consumables and cable ID printer main body of in pictures are not included.

(Only Mk2600) PC can be connected via USB

The ability to transfer data via PC connection with USB, data input large amounts of very convenient. Reads, in addition to the original existing files, a CSV file that you created in Microsoft Excel and also possible. Cooperation with CAD further. I will greatly save time of field work. (PC connection using the included kit)

※support OS: Windows 7 SP1 (32bit/64bit), Windows Vista SP2 (32bit), Windows XP SP3 (32bit)

(Only Mk2600) adopted a keyboard that is easy to input

The Mk2600, I have adopted the laptop keyboard type. Efficiency of the character input is absolutely different.

※Mk1500 is a rubber keyboard.

Printing from minimum 1.3mm font (only Mk2600) possible

From minimum 1.3mm font printing em alphanumeric. Ability to respond in the field is different.

Canon ID Printer Mk2600/ Mk1500 (OBSOLETE)

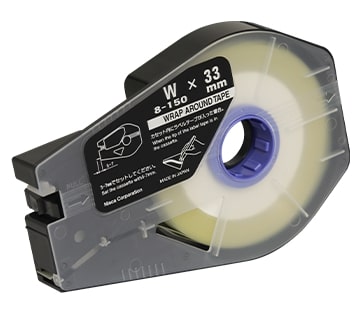

Wrap Around Tape

Transparent laminate covers the printed surface – no need to worry about friction wearing away letters. Width:8-150mm. Length of printed text can vary according to different use.

Tubes

Direct printing on commercially available round tubes (inner diameter: 2.5 to 6.5 mm*) is possible. High-quality clear and crisp printing ensures high management efficiency. * The M-1Std.III is compatible with 2.5 mm to 5.2 mm diameter cables.

4mmID STRIP

By inserting a 4-mm ID strip in the sleeve attached on the cable, the cable marking can be changed without disconnecting the cable from the terminal. There is no risk of interfering with conduction and damaging the cable.
* Use commercially available sleeves.

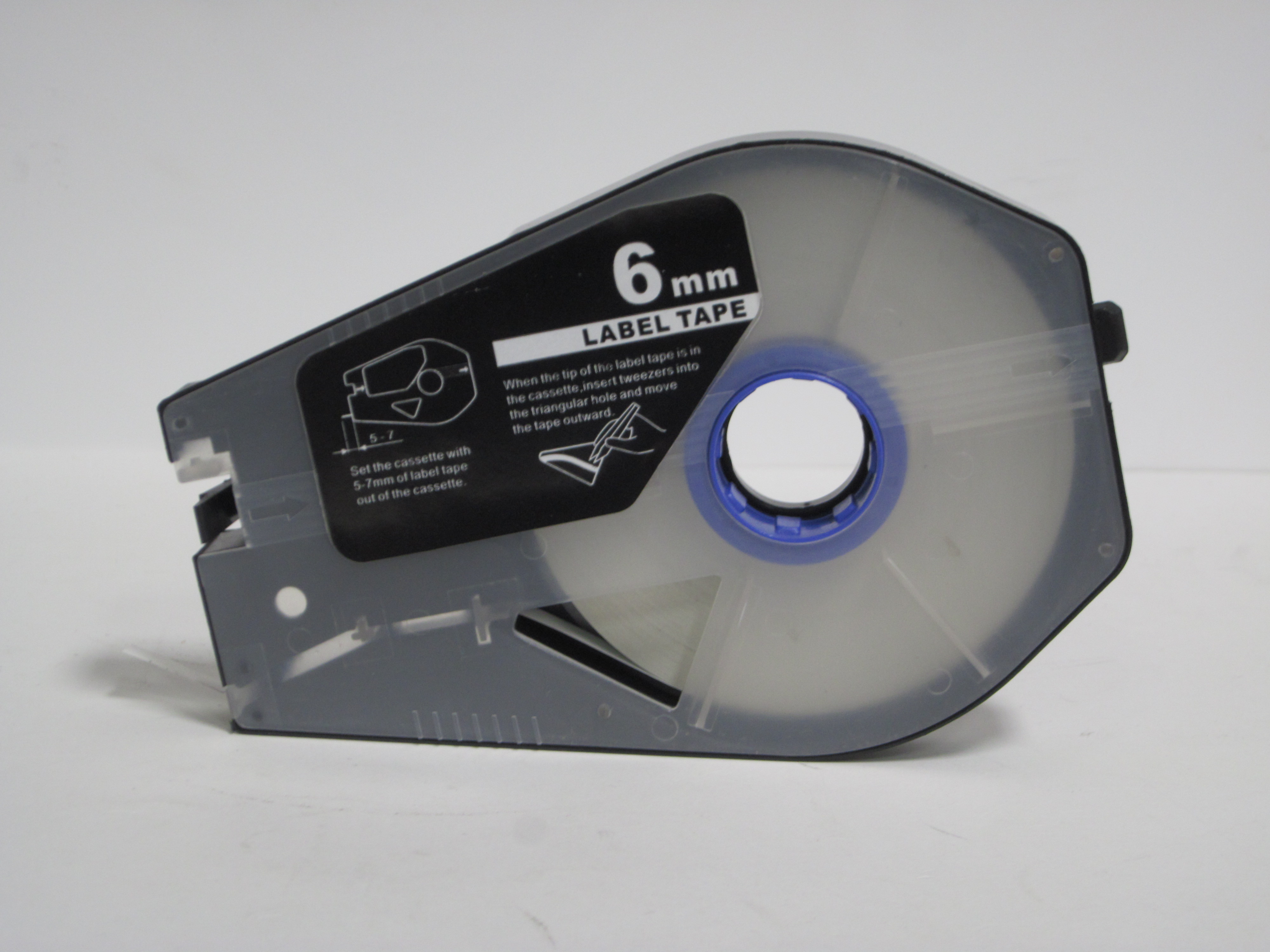

Label tapes

Characters can be printed on the labels to be affixed to the devices at distribution boxes. Characters can be printed from a minimum of 1.3 mm font size*, which is extremely useful for various applications at work sites.
* Mk2600 only

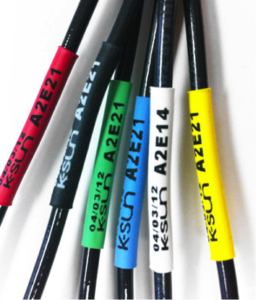

Marking on Heat Shrinkable Tube

Able to print om select Shrinkable tube from ID Size 2.0mm-7mm. Shrink 2:1 or 3 :1

Canon ID Printer Mk2600/ Mk1500 (OBSOLETE)

Clear Printing at Low Temperatures

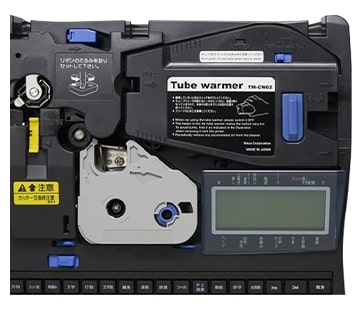

Tube Warmer

Transparent laminate covers the printed surface – no need to worry about friction wearing away letters. Width:8-150mm. Length of printed text can vary according to different use.

Canon ID Printer Mk2600/ Mk1500 (OBSOLETE)

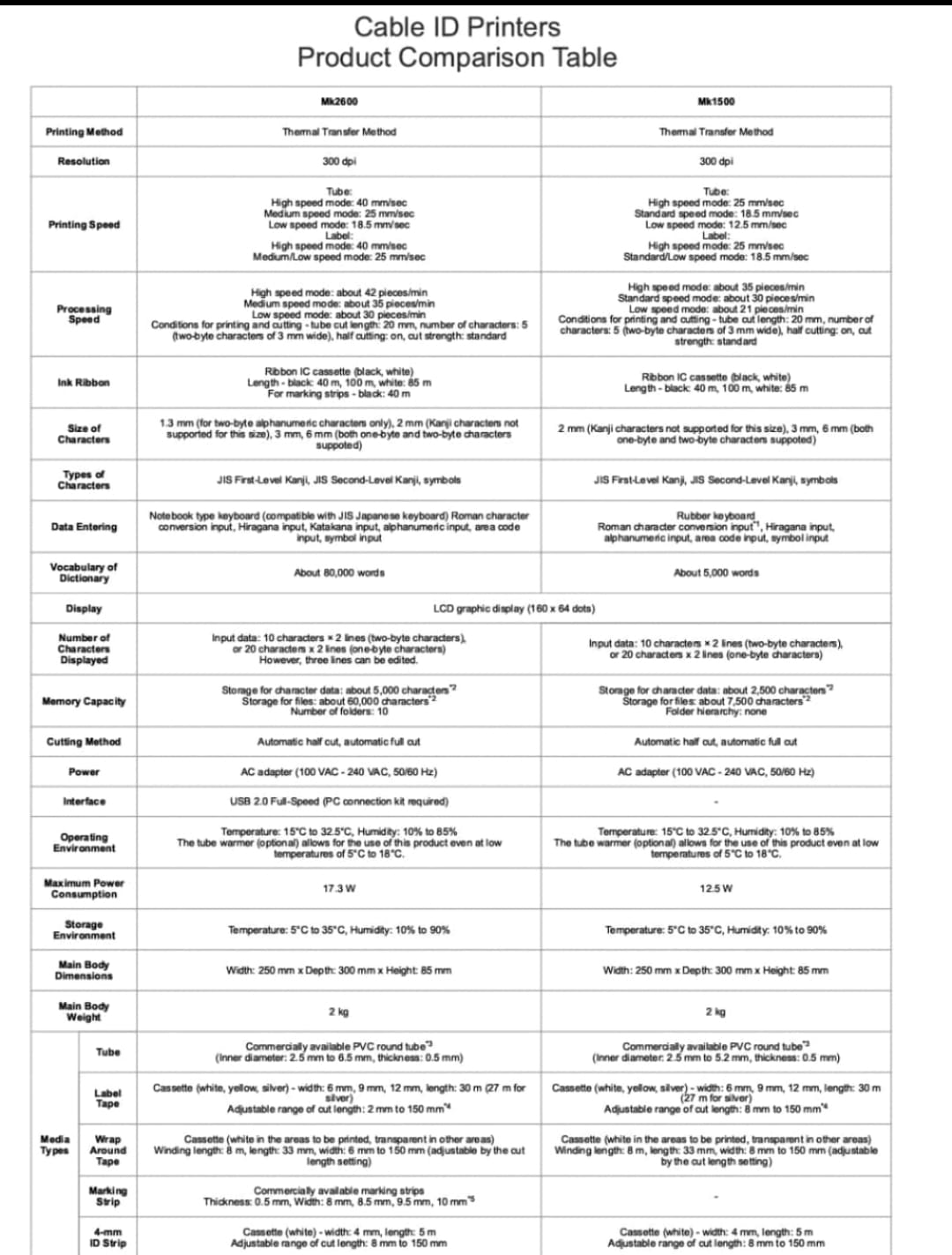

Mk2600

High productivity with 0.01% stops fine pitch adjustment

The Mk2600 prints precise characters of up to 300 dpi for tubes, labels, strip and more. With a large LCD display and automatic full and half-cutting, it offers smooth and easy printing from start to finish.

Full/Half Automatic Cut
High speed and fast output rate up to 40 mm/sec.
Various print patterns

Mk1500

Superior quality and ease of operation

The Mk1500 prints precise characters of up to 300 dpi for tubes, labels and more. With a large LCD display and automatic full and half-cutting, it offers smooth and easy printing from start to finish.

Full/Half Automatic Cut
High speed and fast output rate up to 25 mm/sec.
Various print patterns

*1 Supports single Kanji conversion only.
*2 Data and files are retained for over 5 years by the built-in battery.
*3 When using other tubes (those whose inside diameter is not within the range of 2.5 mm to 6.5 mm, and thickness is not 0.5 mm), please run tests of printing and tube cutting before starting work.
*4When the cut length is less than 3 mm and the size of characters is 1.3 mm (two-byte character) or 2 mm (one-byte character), there may be cases where the cutting line runs across the characters. When making half cut with a cut length of 3.5 mm or less, use the label tape of a width of 9 mm or 12 mm, and adjust the cutting depth.
*5An optional attachment for marking strips is required. The built-in cutter cannot be used for cutting marking strips. The print pitch should be from 2 mm to 150 mm (adjustable by 0.25 mm). The correction of the total length value can be specified by 0.01%. The actual correction value is an approximation of a multiple of 0.085 mm.

Canon ID Printer Mk2600/ Mk1500 (OBSOLETE)

Catalogue MK1500 Download

Catalogue MK2600 Download

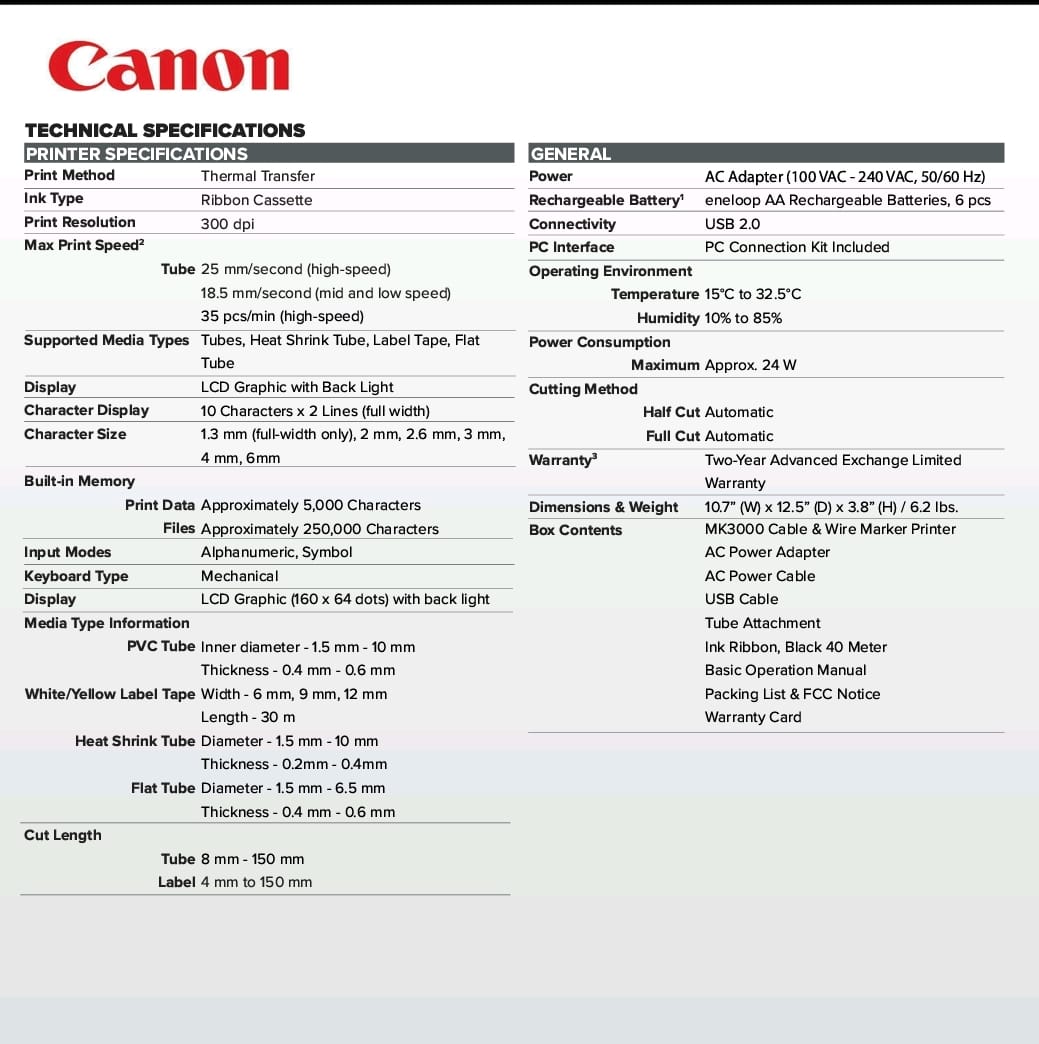

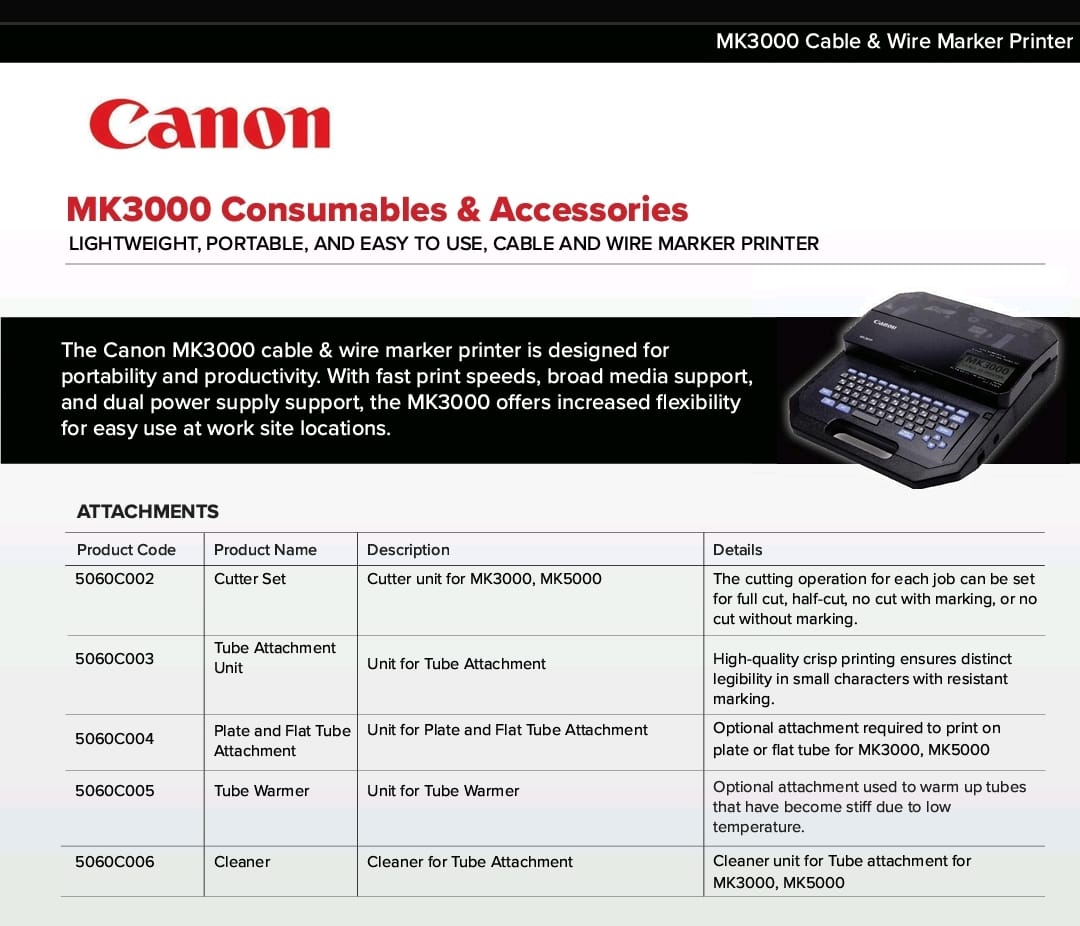

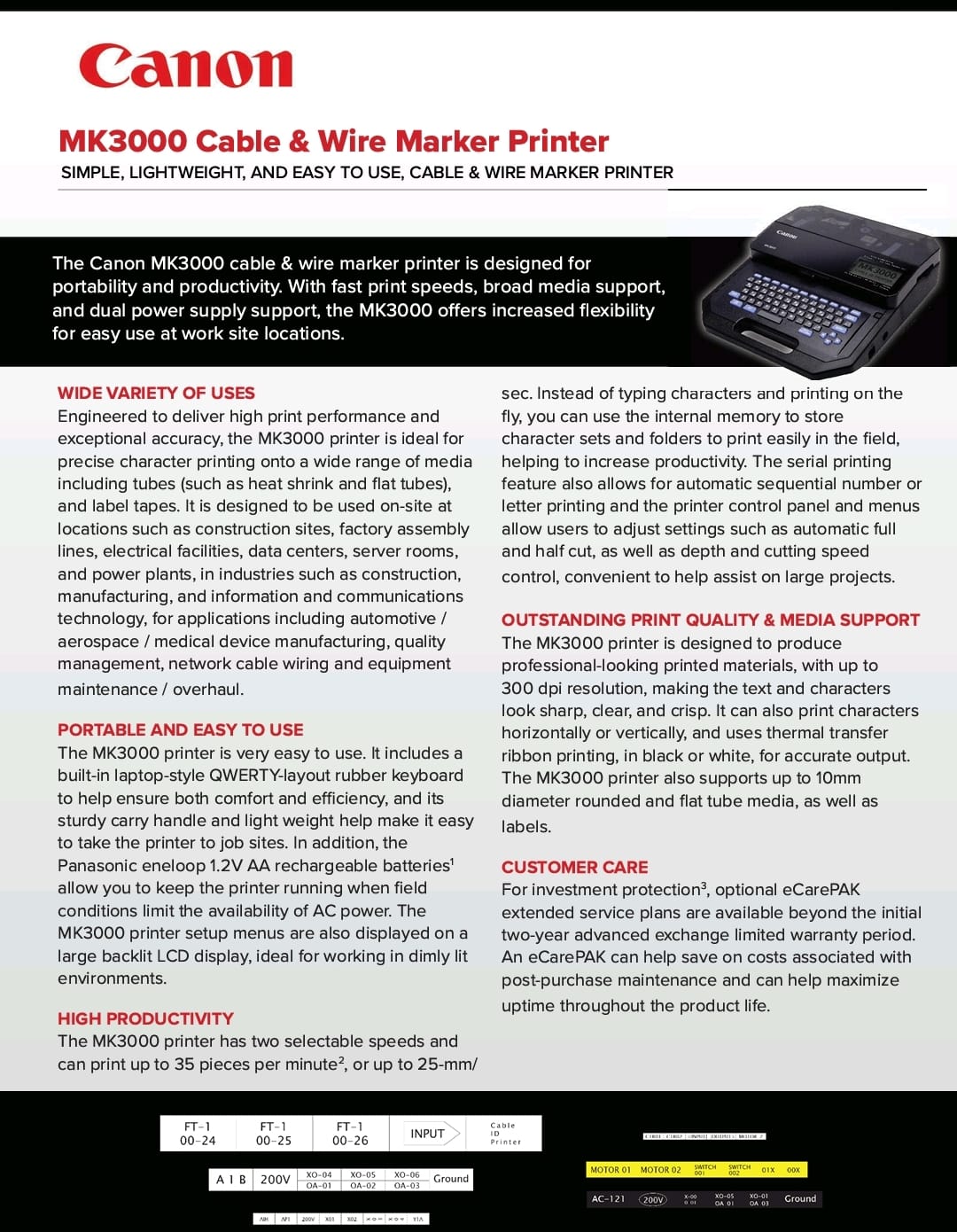

Canon ID Printer MK3000 ( New MK Series)

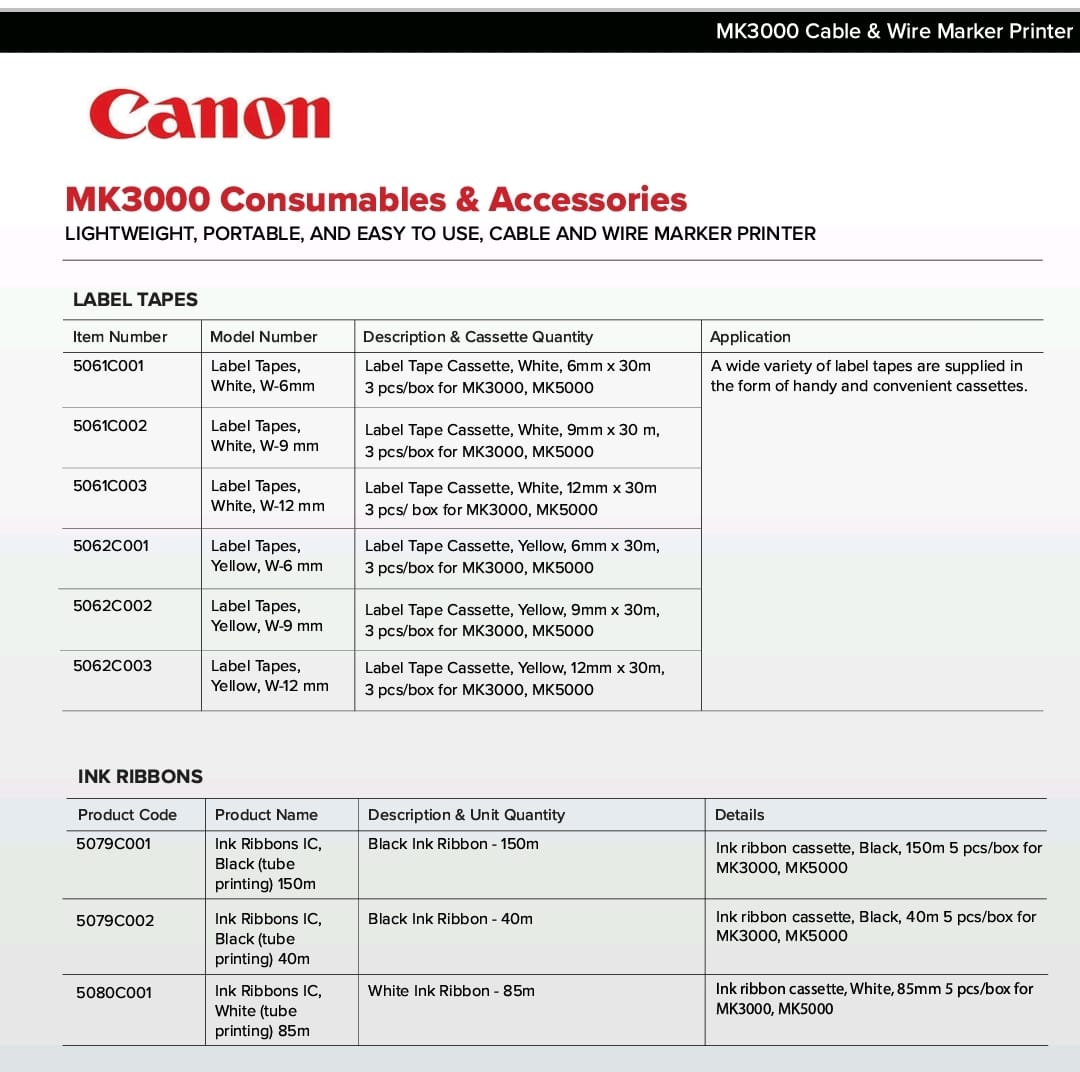

MK3000 CONS1 NK3000 CONS 2

Canon ID Printer MK3000 ( New MK Series)

Tubes

Direct printing on commercially available round tubes (inner diameter: 2.5 to 10 mm*) is possible. High-quality clear and crisp printing ensures high management efficiency. *

Label tapes

Marking on Heat Shrinkable Tube

Able to print om select Shrinkable tube from ID Size 2.0mm-7mm. Shrink 2:1 or 3 :1

Canon ID Printer MK3000 ( New MK Series)

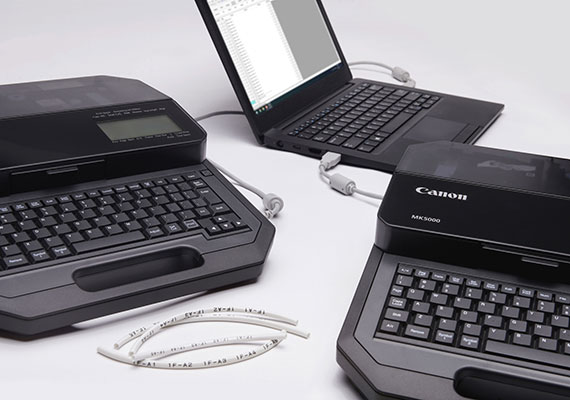

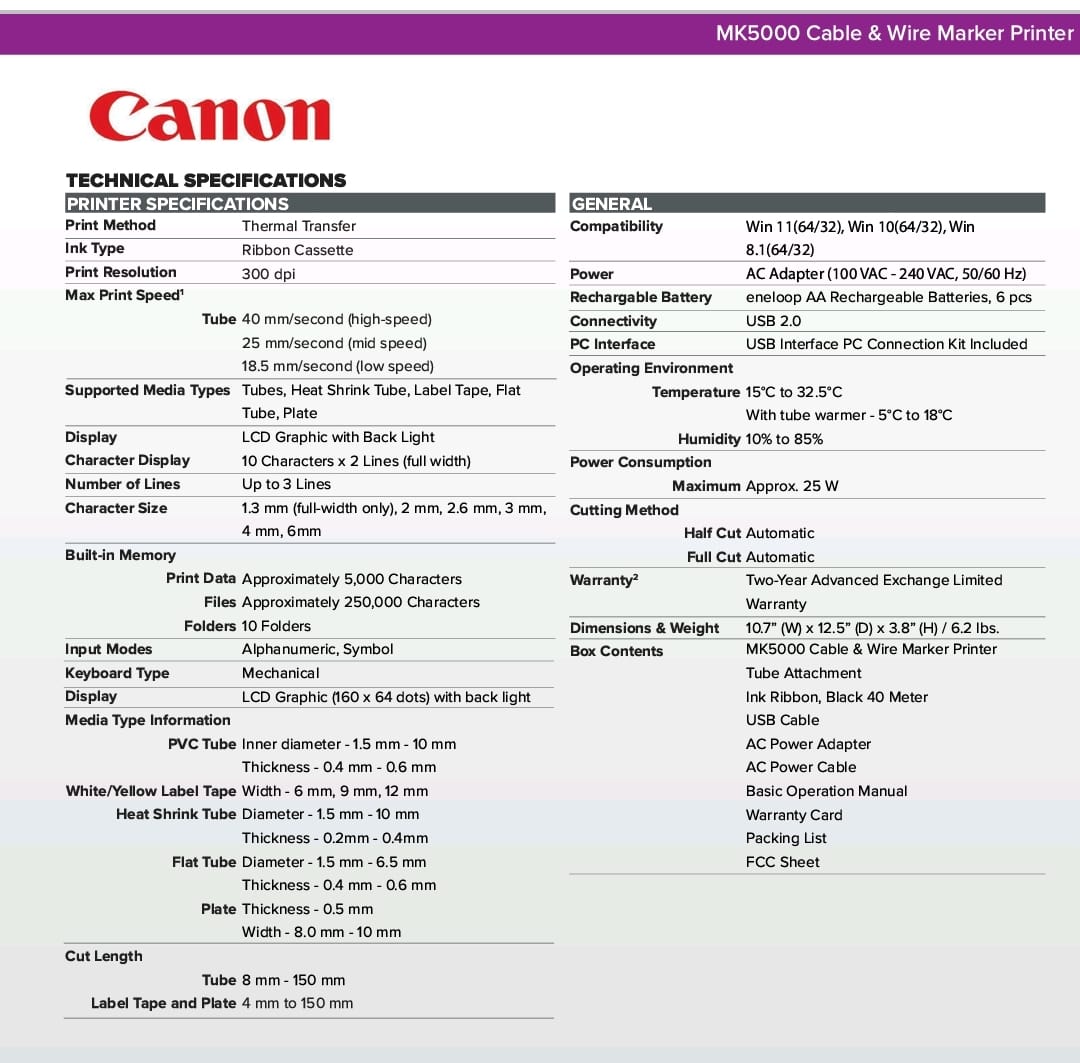

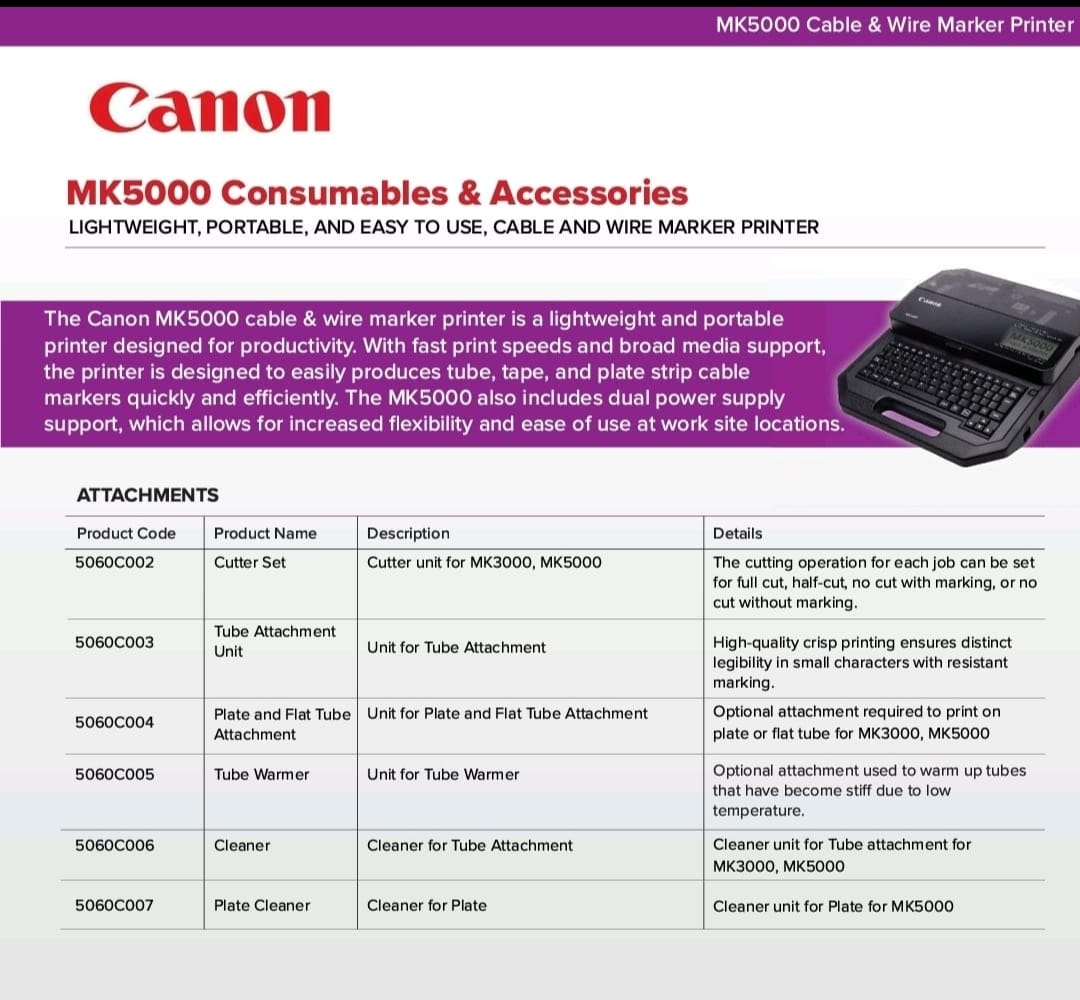

Canon ID Printer MK5000 ( New MK Series)

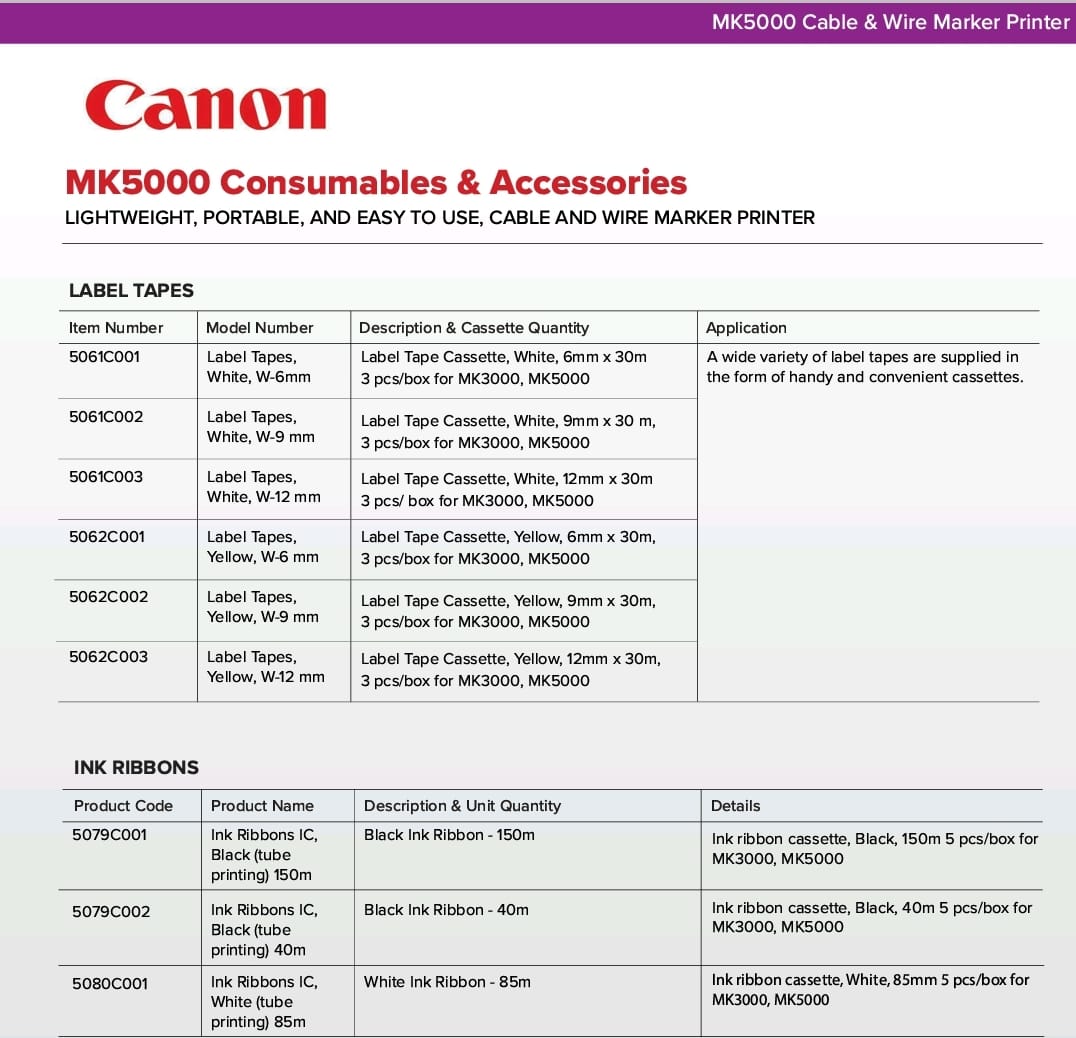

mk5000 c01 mk5000 c2

Canon ID Printer MK5000 ( New MK Series)

Tubes

Direct printing on commercially available round tubes (inner diameter: 2.5 to 10. mm*) is possible. High-quality clear and crisp printing ensures high management efficiency. *

Label tapes

Marking on Heat Shrinkable Tube

Able to print om select Shrinkable tube from ID Size 2.0mm-7mm. Shrink 2:1 or 3 :1

Canon ID Printer MK5000 ( New MK Series)

Clear Printing at Low Temperatures

Tube Warmer

Transparent laminate covers the printed surface – no need to worry about friction wearing away letters. Width:8-150mm. Length of printed text can vary according to different use.
